Üstü Tırnaklı Dik Bitim Profili Yiğit Alüminyum

Tile Profiles

Square Edge Trim Profile with Top Anchoring Leg

Price on request

For prices and delivery terms, contact our export team. Tell us the product, size, colour, quantity and destination country.

Message us on WhatsApp
Request a sample

Product specifications

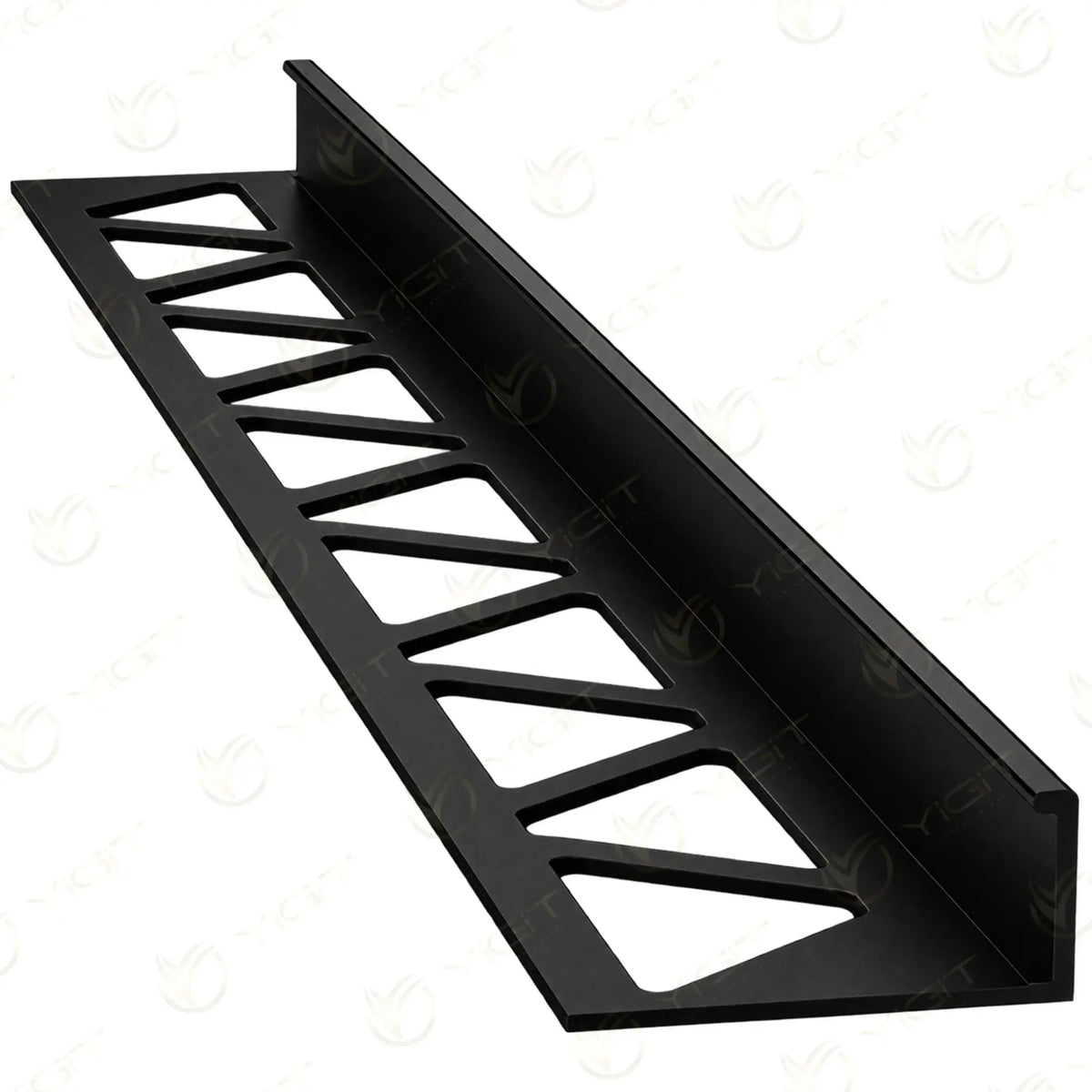

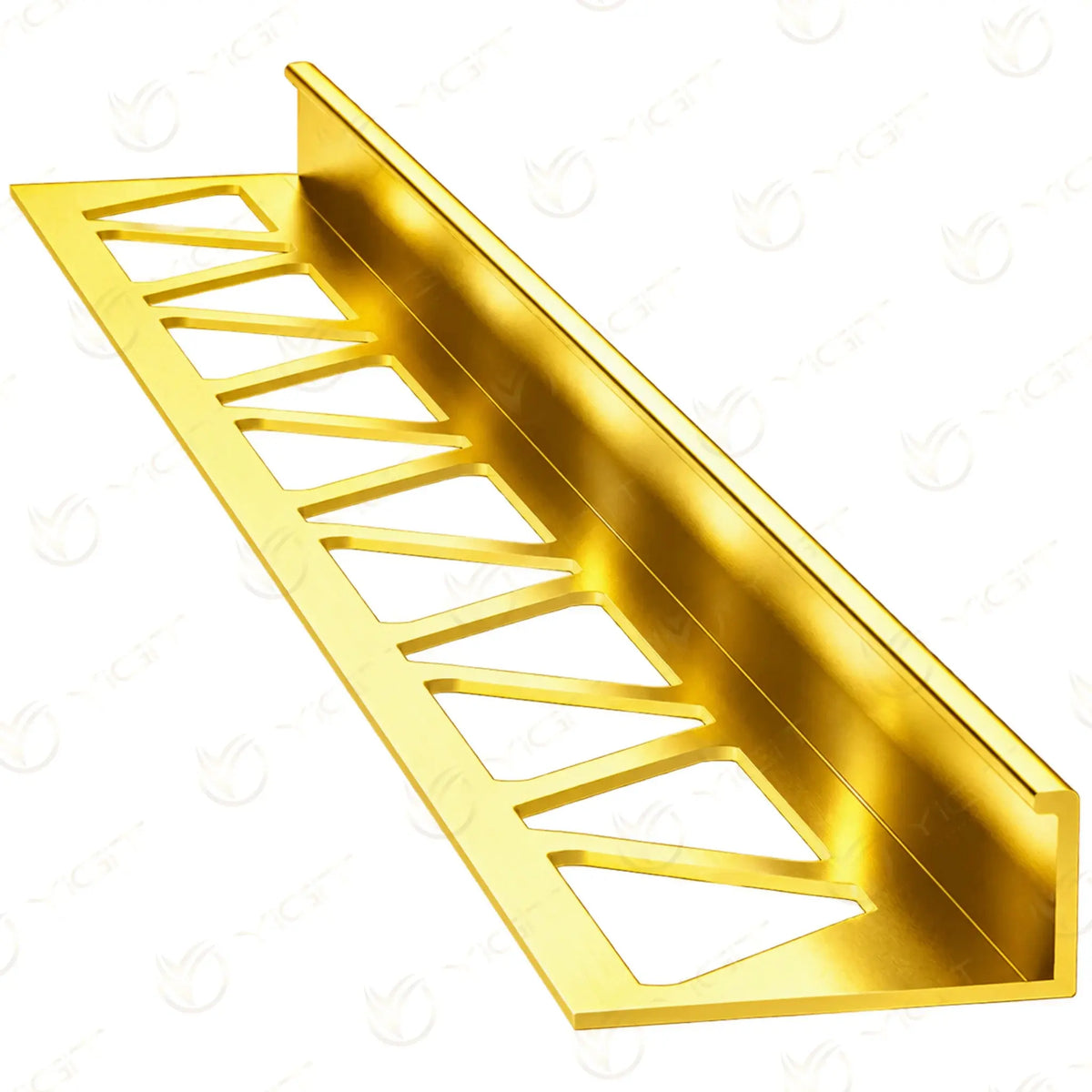

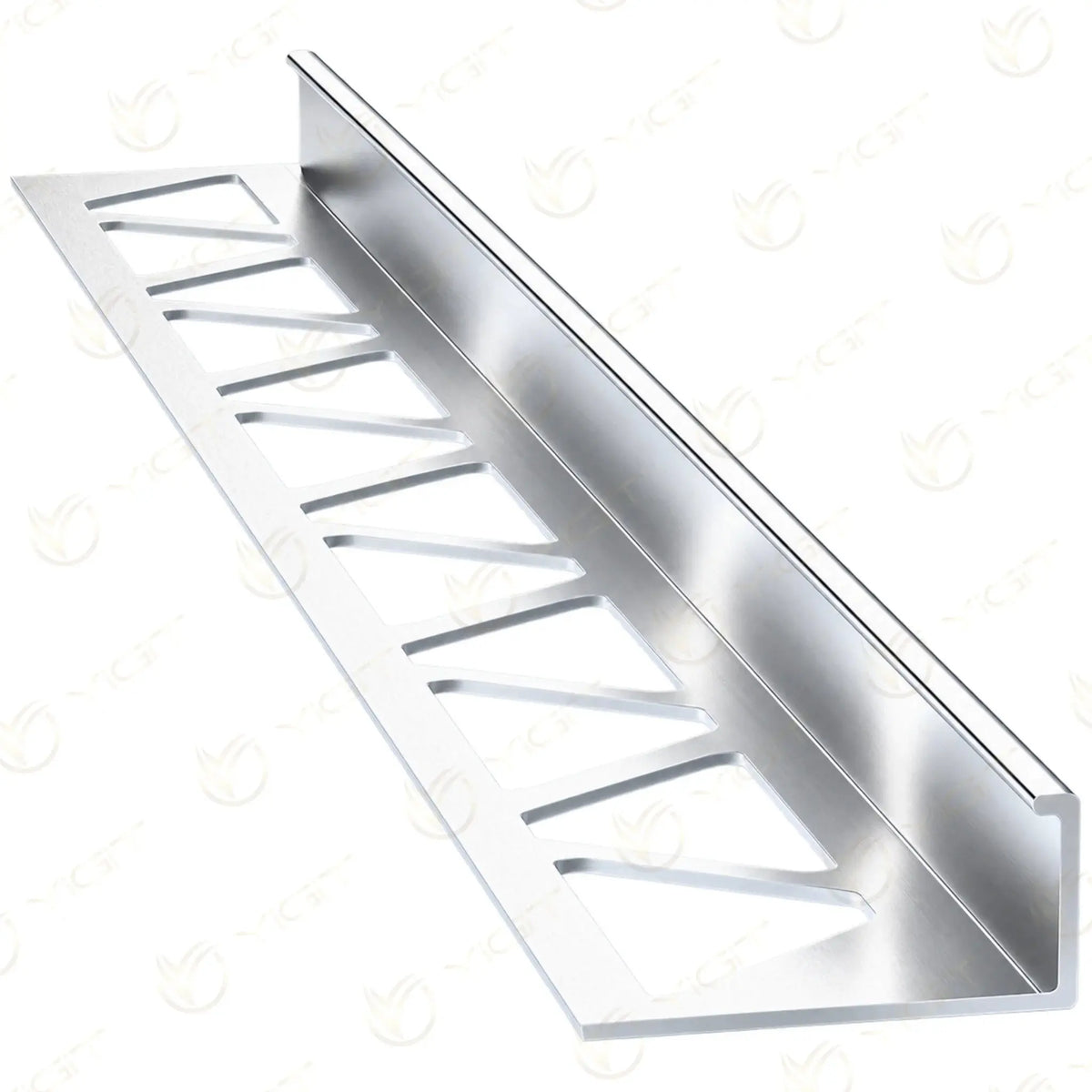

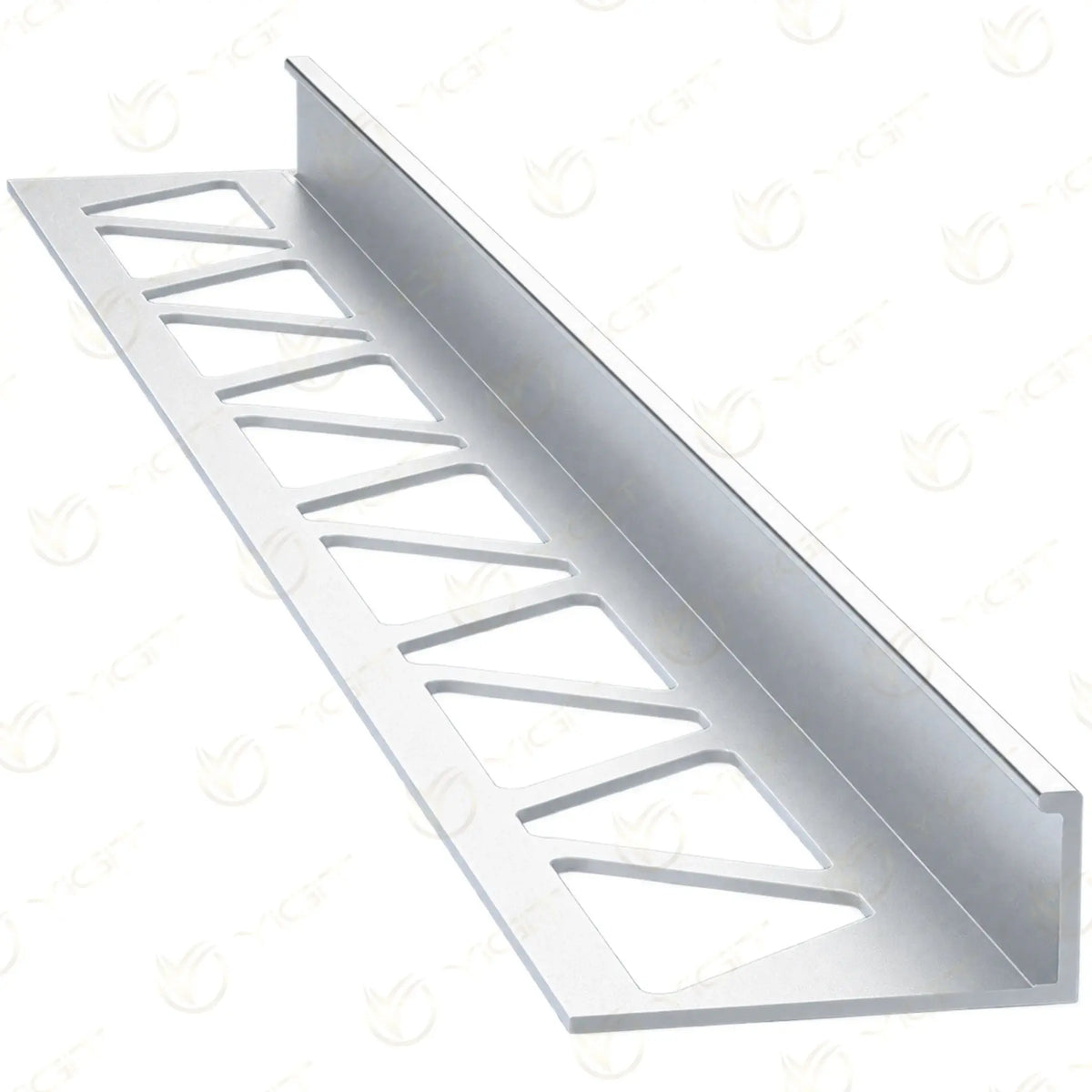

Square Edge Trim Profile with Top Anchoring Leg

The top-lug straight edge trim profile ends the tile edge with a flat aluminium surface and finishes the end of the covering with a short lip at the top. The perforated lower flange allows the profile to be set in place while the tiles are being laid.

Technical specifications
Body
Aluminium

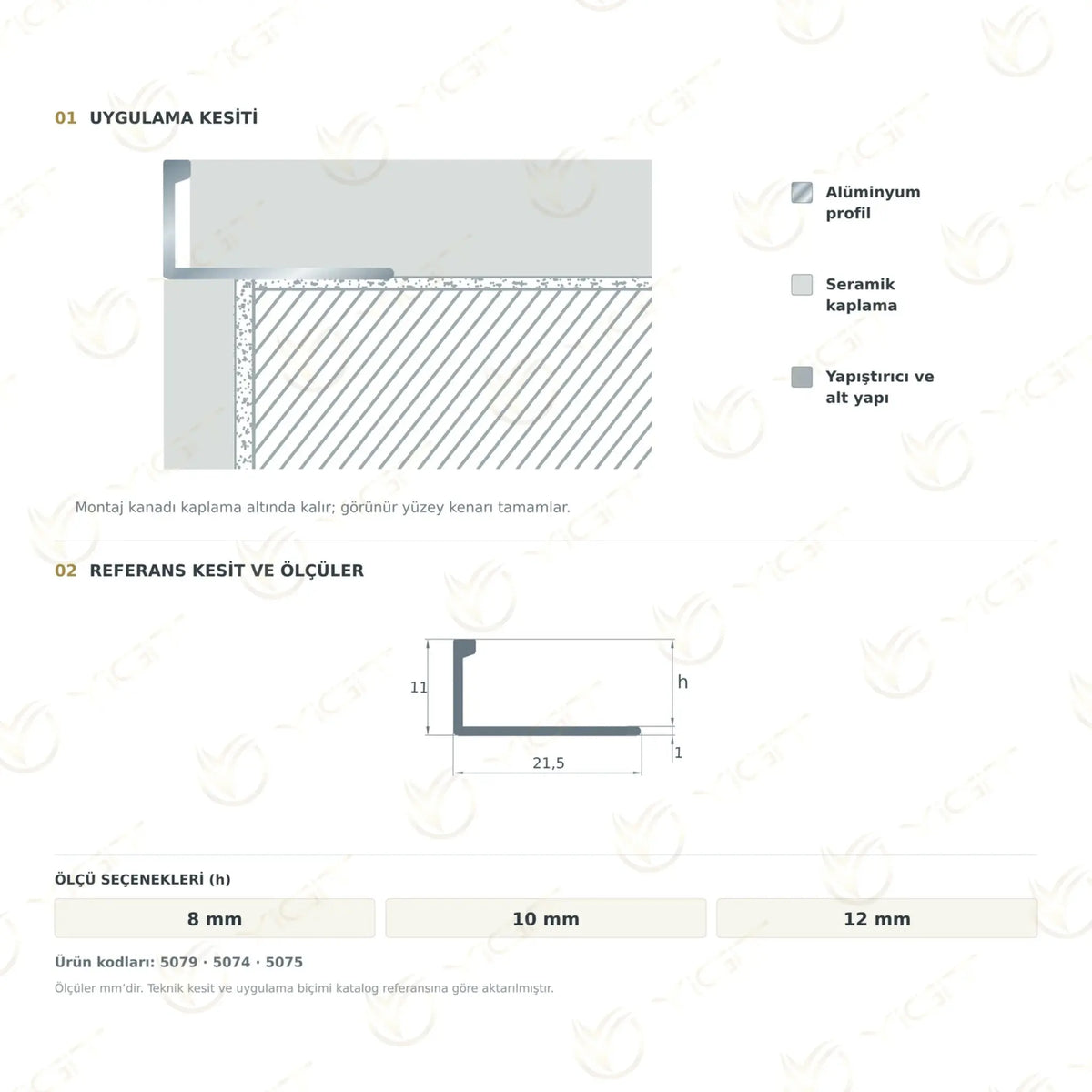

Model size
8, 10 or 12 mm
Section / edge form
Straight finish, inward-turned lip at the top
Mounting section
Perforated flange
Surface finishes
Matt, polished, polished gold, black and other paint colours
Highlights

  • Top lug detail

    The top-lug tile edge trim profile differs from other straight edge trim models in its inward return, which sits close to the top edge of the covering.

  • Flat front finish

    The visible aluminium surface forms a linear, angular boundary at the tile end.

  • Size to suit the covering

    The 8, 10 and 12 mm options are assessed by comparing them with the actual covering and the installation allowance.

  • Perforated mounting extension

    The flange is the fixing area intended to sit in the adhesive bed beneath the covering.

Applications and model selection

It can be used at wall covering ends and open edge details where a tile edge trim with a top return is wanted. When choosing the model, the relationship between the top lip and the tile surface is checked in particular.

Installation and Covering Compatibility

The covering and the profile are trial-fitted together and the lug alignment is adjusted. The perforated flange is set in the mounting bed and the visible edge is kept on a straight line. The shape of the section should not be regarded as a guarantee of a mechanical lock.

Made to order

Bulk Order Request

Product
Square Edge Trim Profile with Top Anchoring Leg
pcs

Required fields · Personal data notice (KVKK)

Direct from the manufacturer

Yiğit Alüminyum has been manufacturing aluminium profiles since 2007. See our production process, from die to dispatch.

View the production process
