Paslanmaz Çelik Z Geçiş Profili Yiğit Alüminyum

Stainless Steel Flooring Profiles

Stainless Steel Z Transition Profile

Price on request

For prices and delivery terms, contact our export team. Tell us the product, size, colour, quantity and destination country.

Message us on WhatsApp
Request a sample

Product specifications

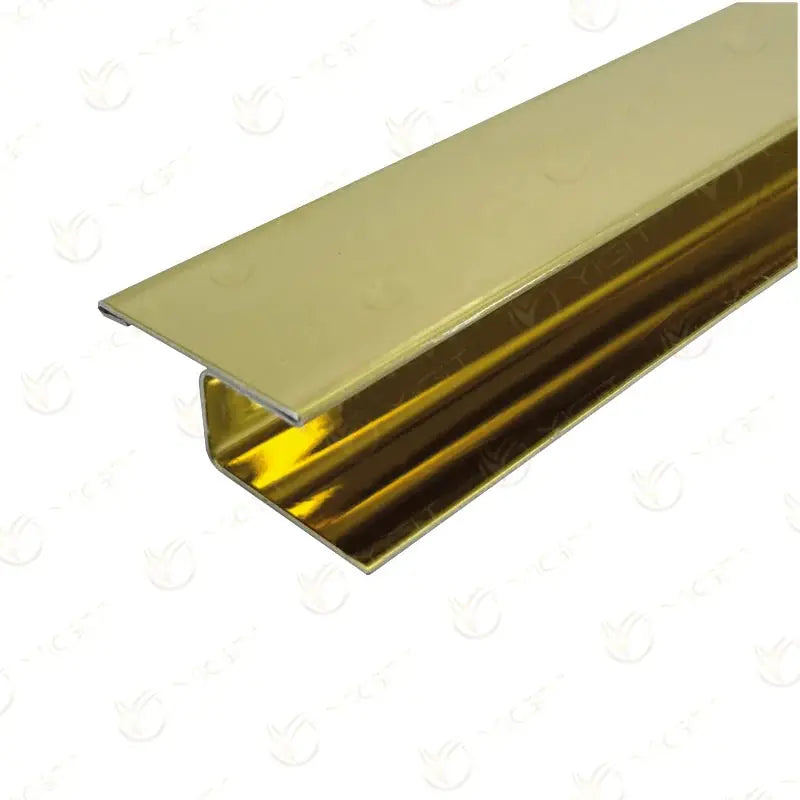

Stainless Steel Z Transition Profile

The stainless steel Z transition profile joins covering edges at different levels with a stepped section. The top flange, vertical part and bottom flange of the stainless steel body form a neat finish at the transition between parquet and the adjacent floor covering.

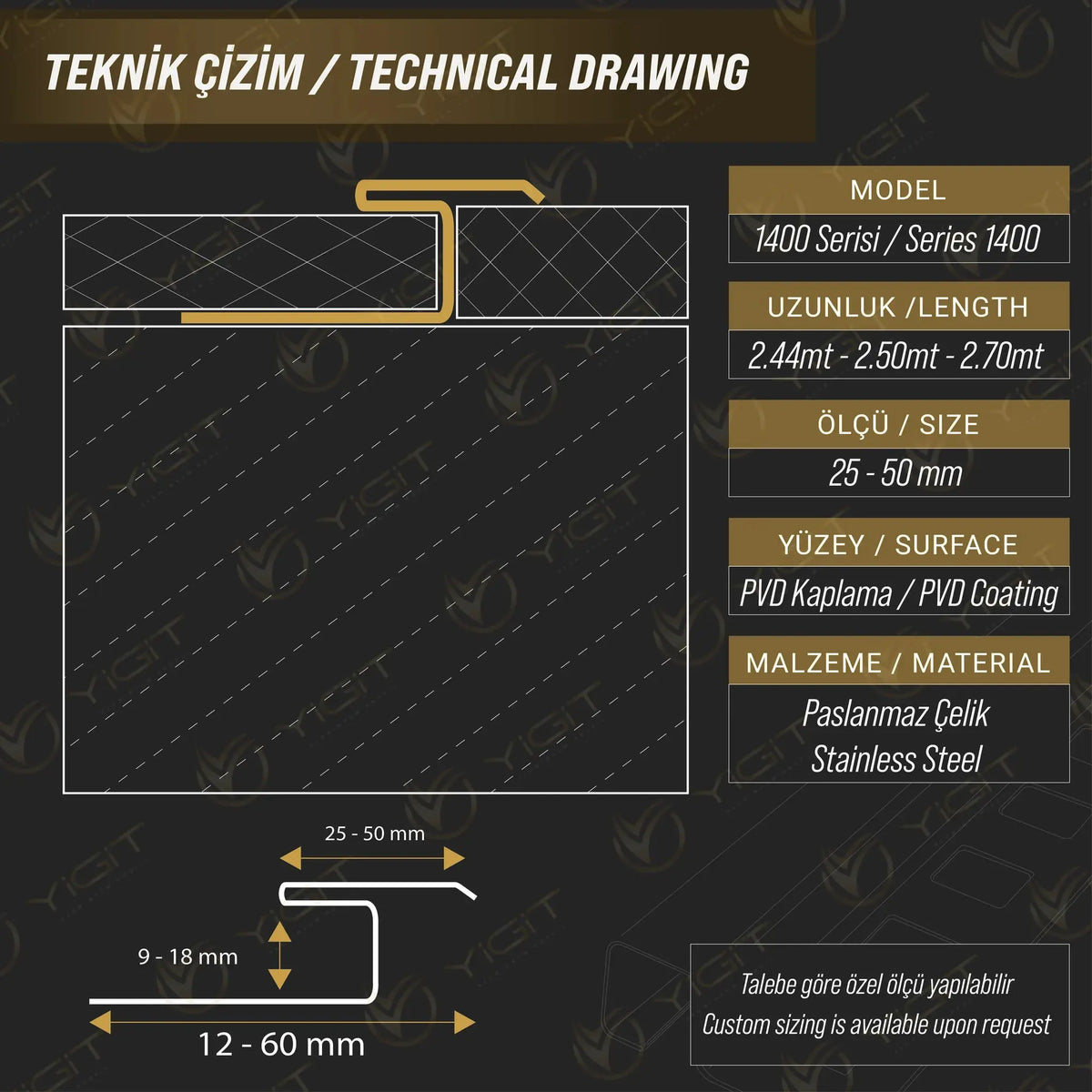

Technical specifications
Material
Stainless steel
Section shape
Stepped Z section
Top flange width
25–50 mm
Vertical range
9–18 mm
Placement
Bottom connection flange
Profile length
2.44 / 2.50 / 2.70 m
Highlights

  • Stepped Z section

    The Z flooring transition profile has a connection geometry in which the top and bottom flanges are at different levels.

  • Visible top flange

    The 25–50 mm top width determines the visible metal surface of the transition.

  • Fit to the covering range

    During placement, the 9–18 mm vertical range of the section is compared with the covering and the installation bed.

  • Bottom connection flange

    The bottom part sits within the covering detail; the top part completes the transition line.

Applications and model selection

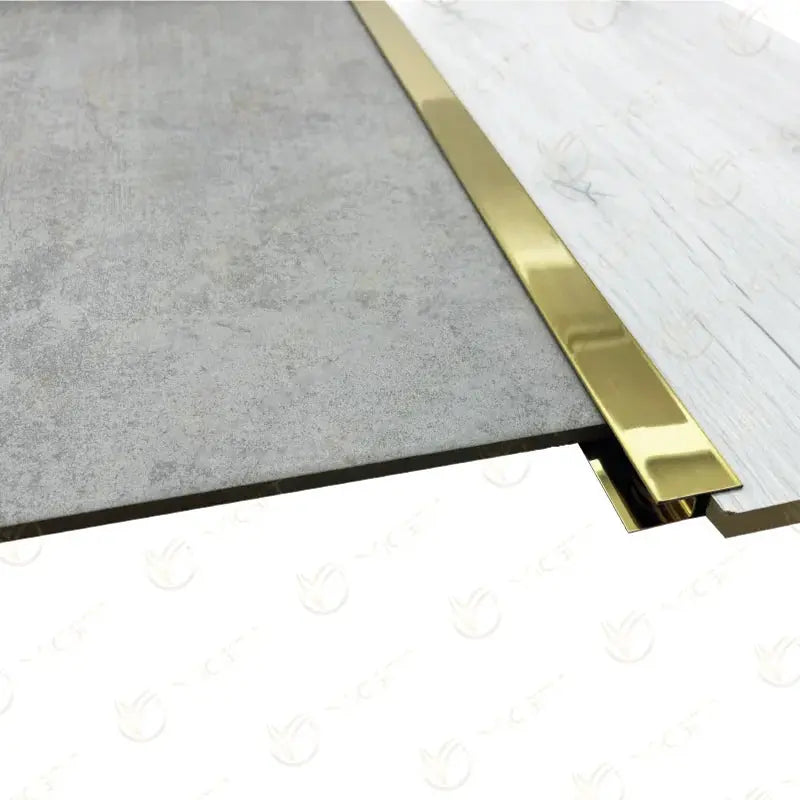

It can be considered for transitions with a level difference where parquet meets tile or another floor covering. When selecting a stainless steel Z threshold profile, the finished levels of the two surfaces and the covering thicknesses are measured together.

Installation and Covering Compatibility

The placement of the bottom flange is planned according to the order in which the coverings are laid. The profile is dry-fitted along the transition line; the seating of the top flange and the fit of the vertical range are checked. The required movement gap of the floor covering is maintained.
