Kare Dış Köşe Profili Yiğit Alüminyum

Images are representative; the colour and size you select may differ from the image.

Tile Profiles

Square External Corner Profile

Price on request

For prices and delivery terms, contact our export team. Tell us the product, size, colour, quantity and destination country.

Message us on WhatsApp
Custom colour request Min. 500 pcs

The minimum order for custom colour production is 500 pieces.

pcs
Request custom colour on WhatsApp (opens in a new tab)
Request a sample

Product specifications

Square External Corner Profile

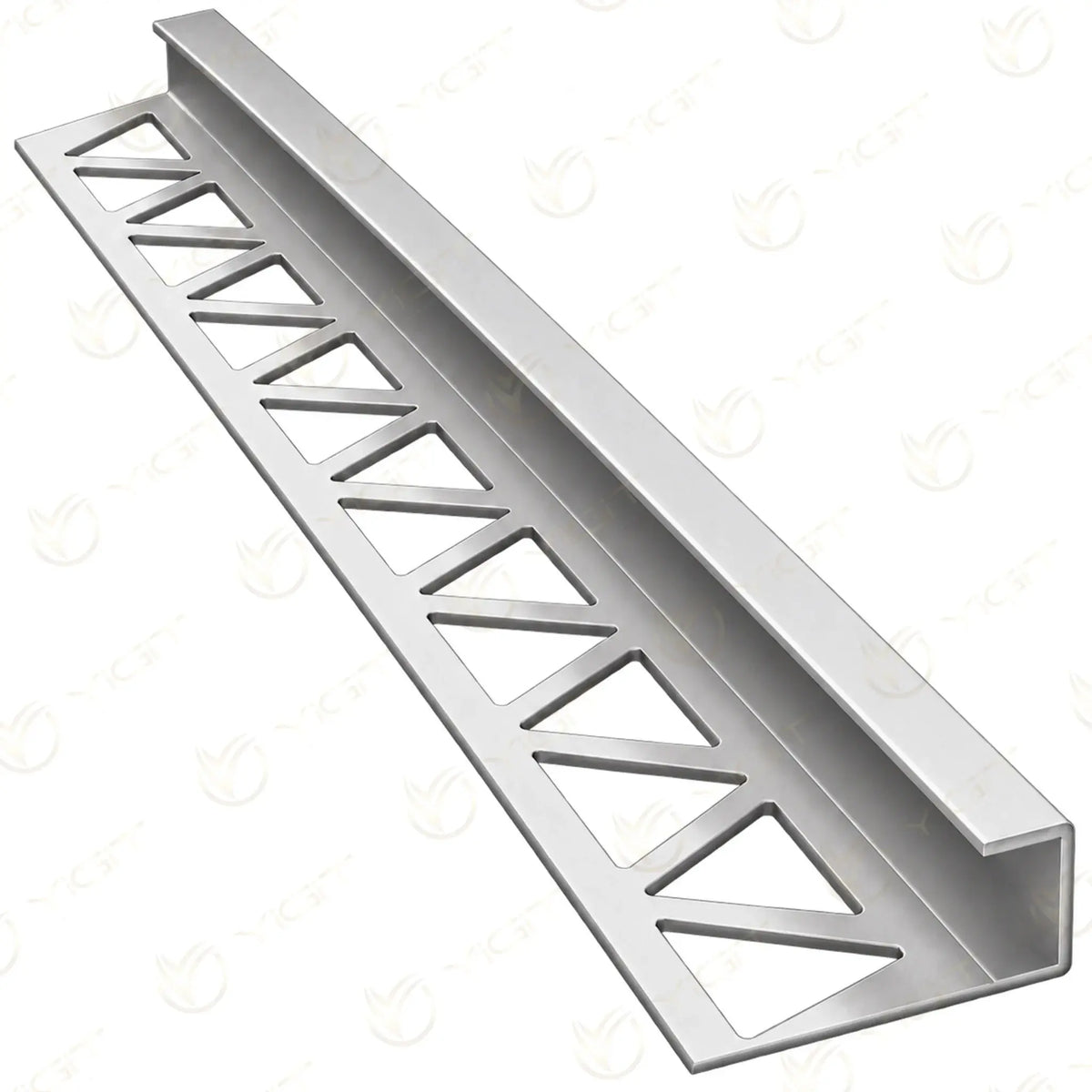

The square outside corner profile forms a flat, angular metal line at the outside corner of tiled surfaces. The open-section aluminium body and short return flange connect the square face to the perforated mounting section.

Technical specifications
Body
Aluminium
Model size
10 or 12 mm
Section / edge form
Open section with square appearance
Mounting section
Perforated flange
Surface finishes
Matt, polished, polished gold, painted
Profile length
2.7 m
Highlights

  • Angular outer appearance

    The square tile corner profile is intended for designs that call for a flat-faced finish instead of a round nose.

  • Open section structure

    The open geometry of the body brings together the visible corner and the connection section that lies beneath the tile.

  • Finishing the tile end

    The aluminium edge helps the cut face of the tile to look neat at the outside corner.

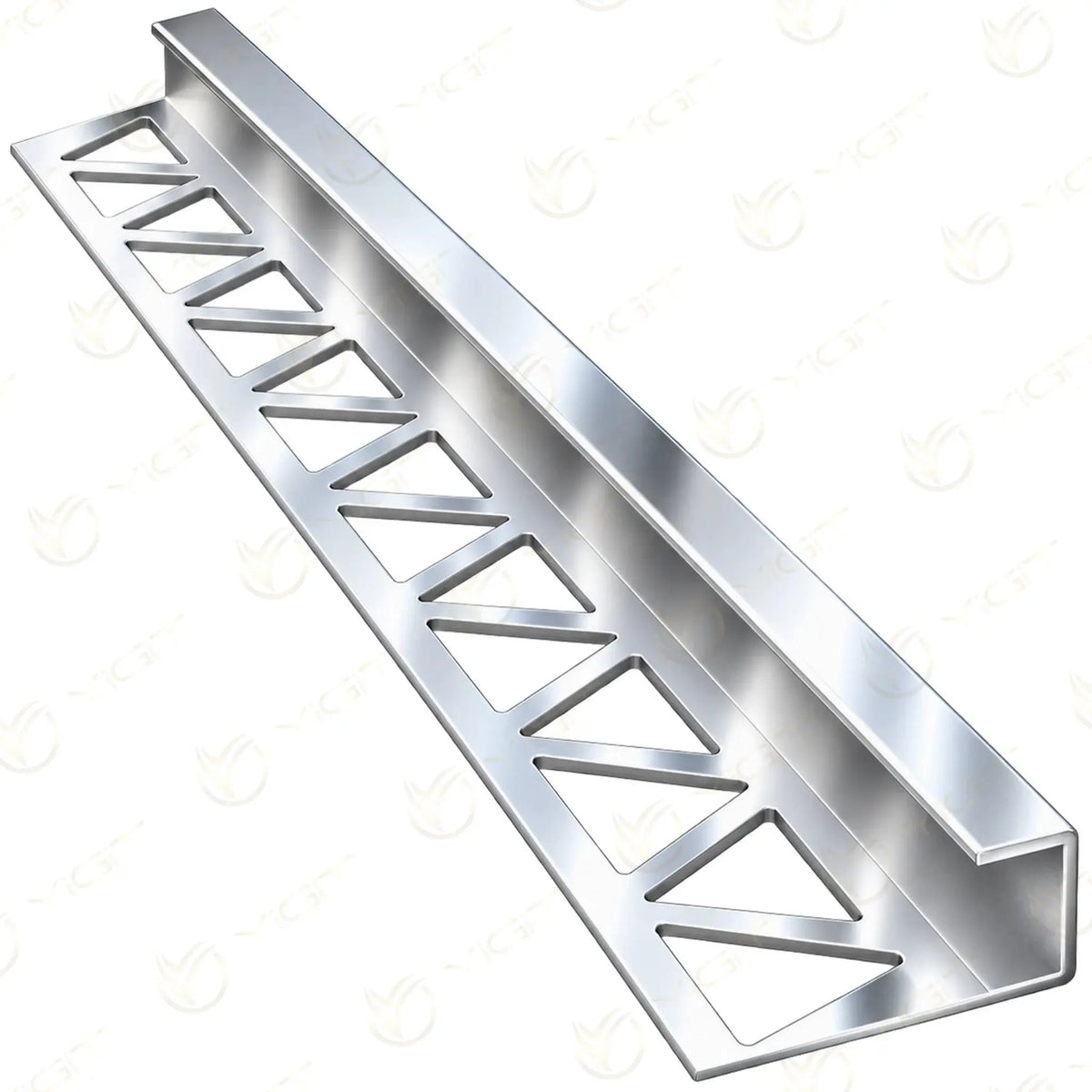

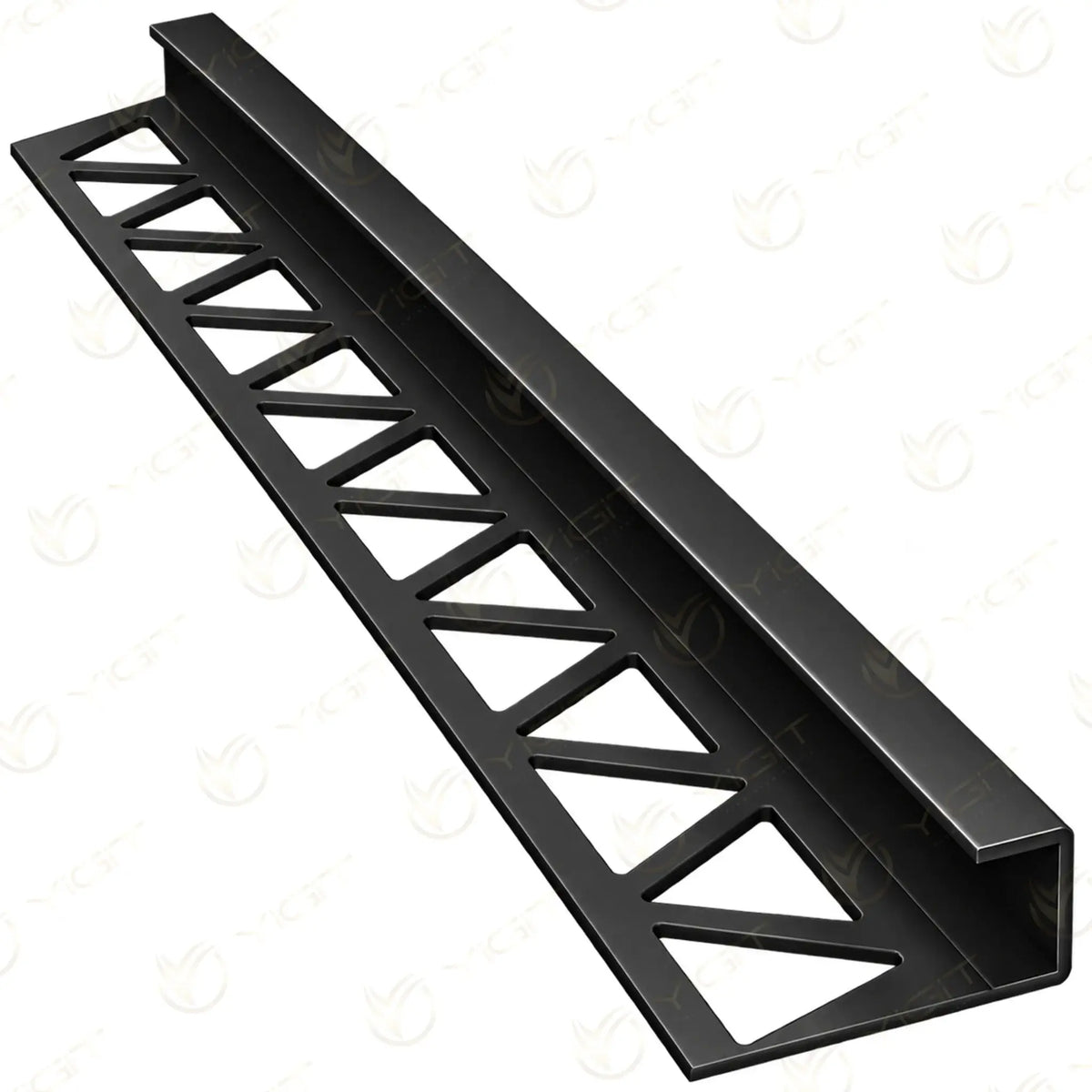

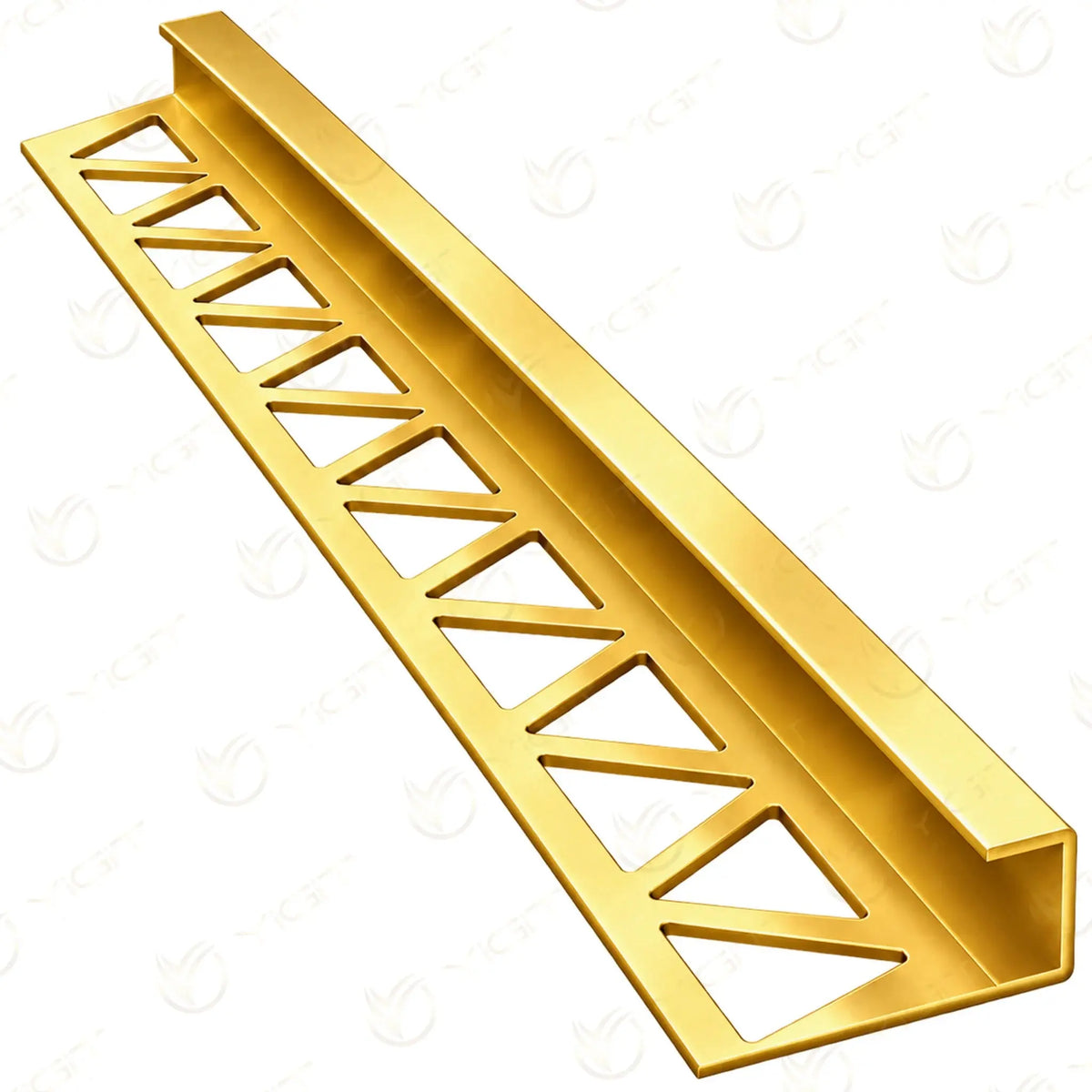

  • Four surface groups

    The matt, polished, polished gold and painted options can be matched with the grout colour and the surrounding metal details.

Applications and model selection

It can be used on wall tiling, niche edges and columns where an angular finish is wanted. When choosing a square tile corner trim, the 10 or 12 mm profile size is compared with the finished tiling thickness.

Installation and Covering Compatibility

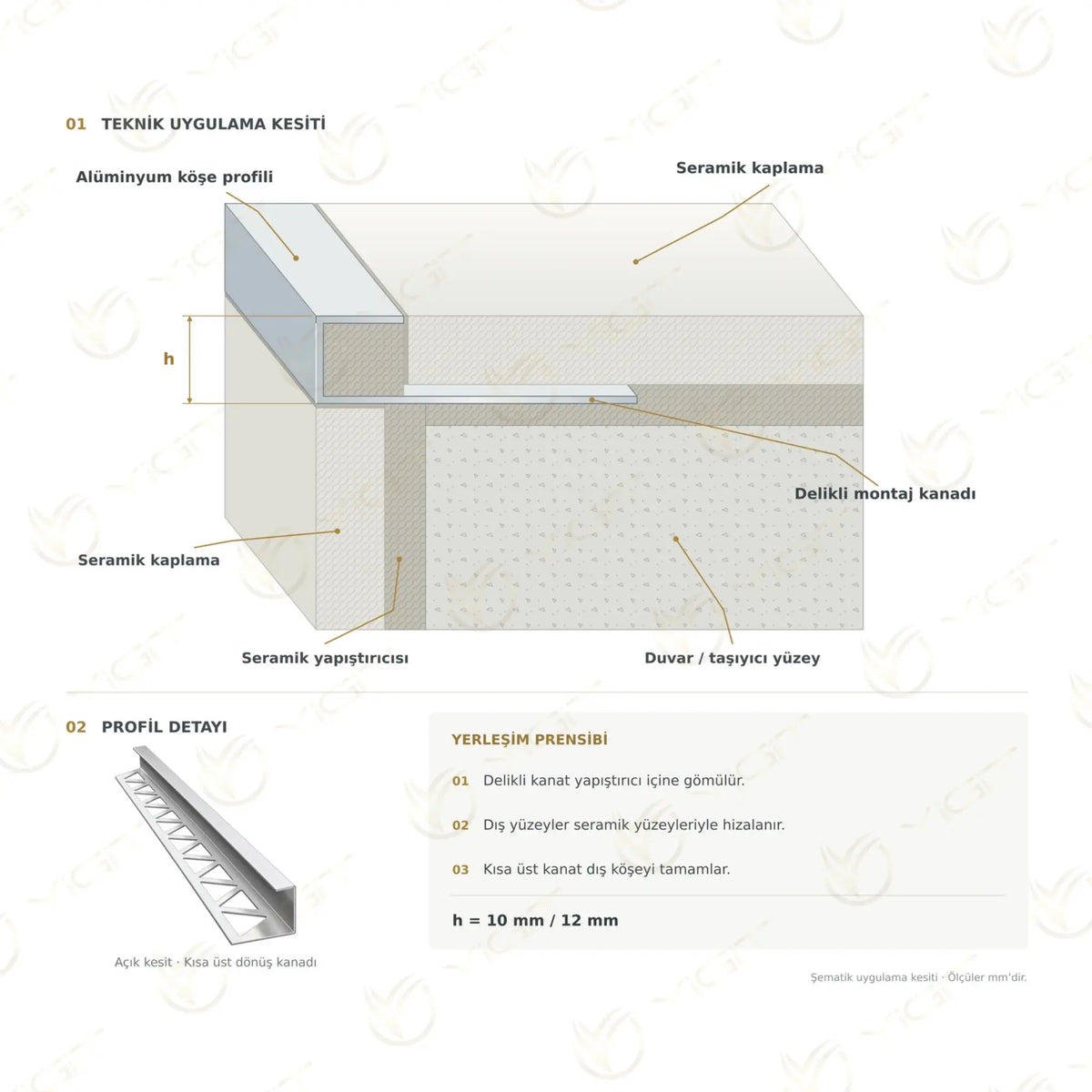

The profile is placed so that the perforated flange lies beneath the tile. The two faces of the corner are aligned in the same line; the visible edge is checked so that it does not project unnecessarily from the tiling. The joint layout is completed according to the application system.

Made to order

Bulk Order Request

Product
Square External Corner Profile Y6278 / Y6277
