Dilatasyon Profili Yiğit Alüminyum

Images are representative; the colour and size you select may differ from the image.

Tile Profiles

Expansion Joint Profile

Price on request

For prices and delivery terms, contact our export team. Tell us the product, size, colour, quantity and destination country.

Message us on WhatsApp
Request a sample

Product specifications

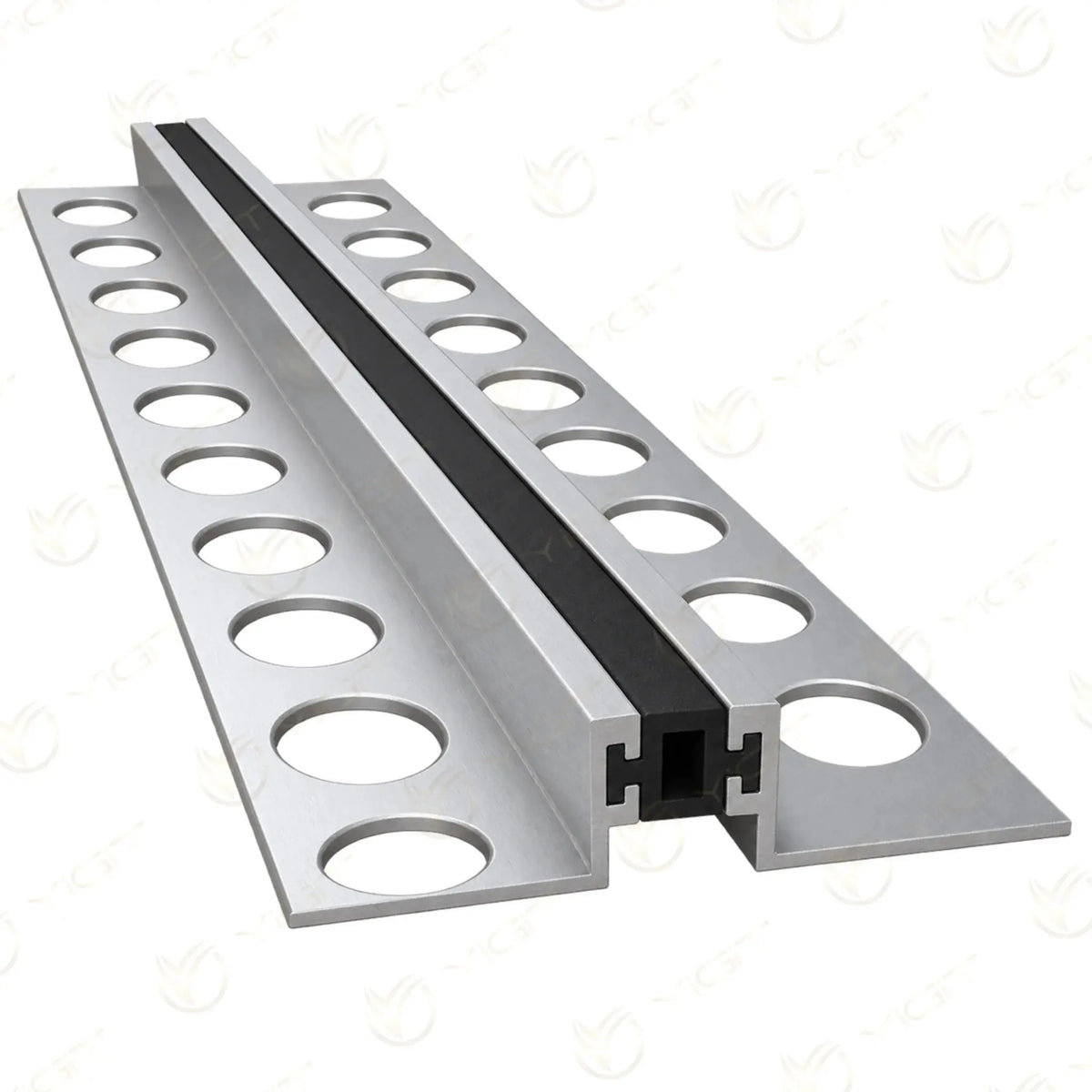

Expansion Joint Profile

The 10–12 mm tile movement joint profile manages the planned movement joint in tiling with two aluminium flanges and a flexible centre section. Considered as a tile expansion profile, this section forms a controlled joint line where adjoining tiled areas meet.

Technical specifications
Body
Aluminium
Model size
10 or 12 mm
Section / edge form
Two side flanges and a flexible centre section
Mounting section
Perforated flange
Surface finishes
Matt, polished
Profile length
2.7 m
Highlights

  • Flexible centre section

    The flexible area at the centre of the movement joint profile is the part intended to accommodate movement in the tiling joint; it is selected according to the project requirement.

  • Perforated flange on both sides

    The flanges lie beneath the tile, allowing the tile edges on both sides of the joint to be finished with the metal profile.

  • 10 and 12 mm models

    The profile height is assessed together with the tile thickness and the finished level created by the adhesive bed.

  • Neat joint appearance

    The aluminium edges form a distinct line running along the movement joint and separate the tiled areas.

Applications and model selection

It can be used in tiled floors at the movement joints set out in the project. When choosing a tile movement joint trim, the joint position, the expected movement and the conditions of use should be assessed together.

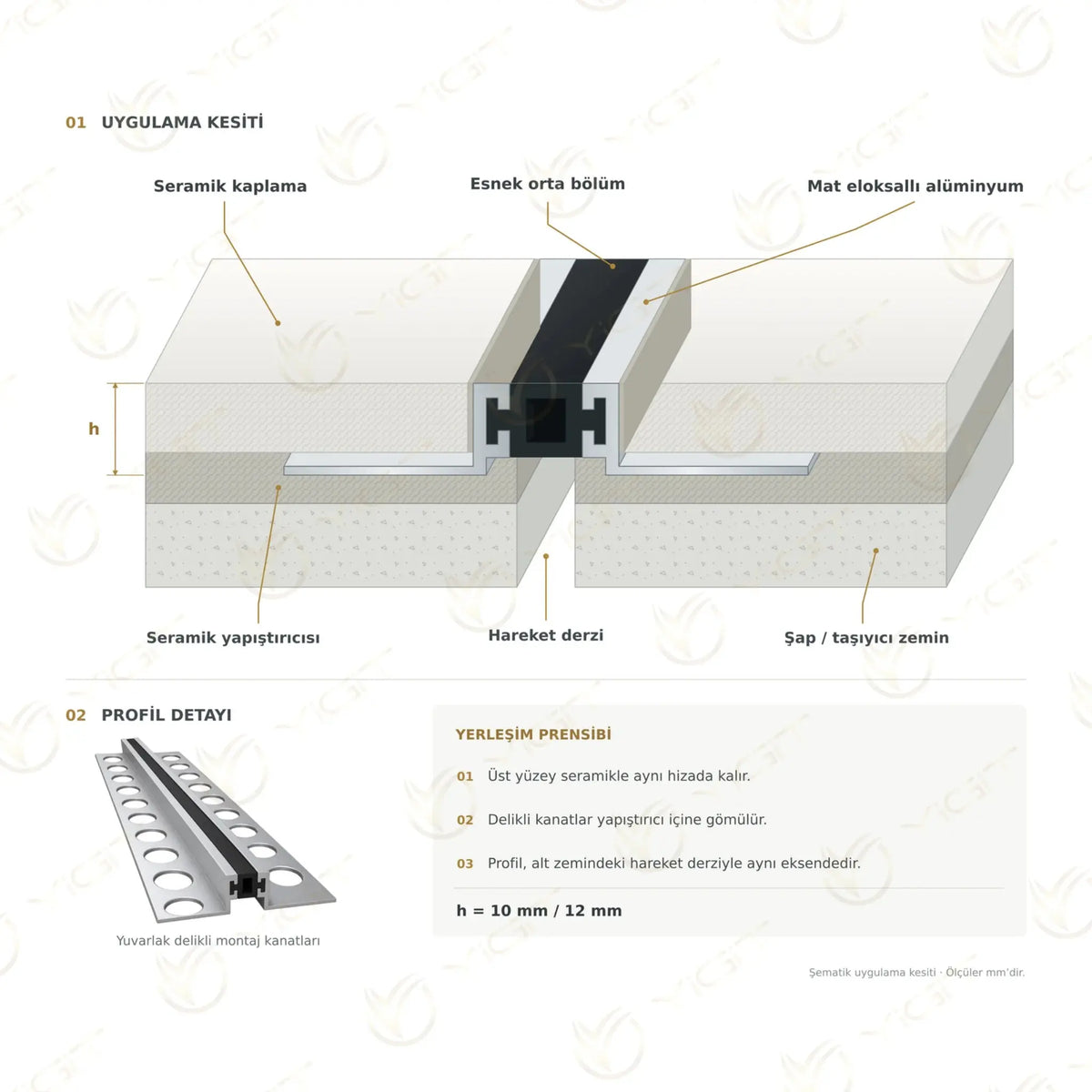

Installation and Covering Compatibility

The profile is placed on the joint line defined in the project; no rigid filler that would restrict the movement of the centre section is applied. Technical suitability in terms of movement capacity, joint width and load conditions must be verified separately.

Made to order

Bulk Order Request

Product
Expansion Joint Profile Y6259 / Y6260
pcs

Include the unit. Write "Standard size" if you need the standard size.

Required fields · Personal data notice (KVKK)

Direct from the manufacturer

Yiğit Alüminyum has been manufacturing aluminium profiles since 2007. See our production process, from die to dispatch.
