1.5CM Slim LED Profili Yiğit Alüminyum

LED Profiles

1.5 cm Slim LED Profile

Price on request

For prices and delivery terms, contact our export team. Tell us the product, size, colour, quantity and destination country.

Message us on WhatsApp
Custom colour request Min. 300 m

The minimum order for custom colour production is 300 metres.

metre
Request custom colour on WhatsApp (opens in a new tab)
Request a sample

Product specifications

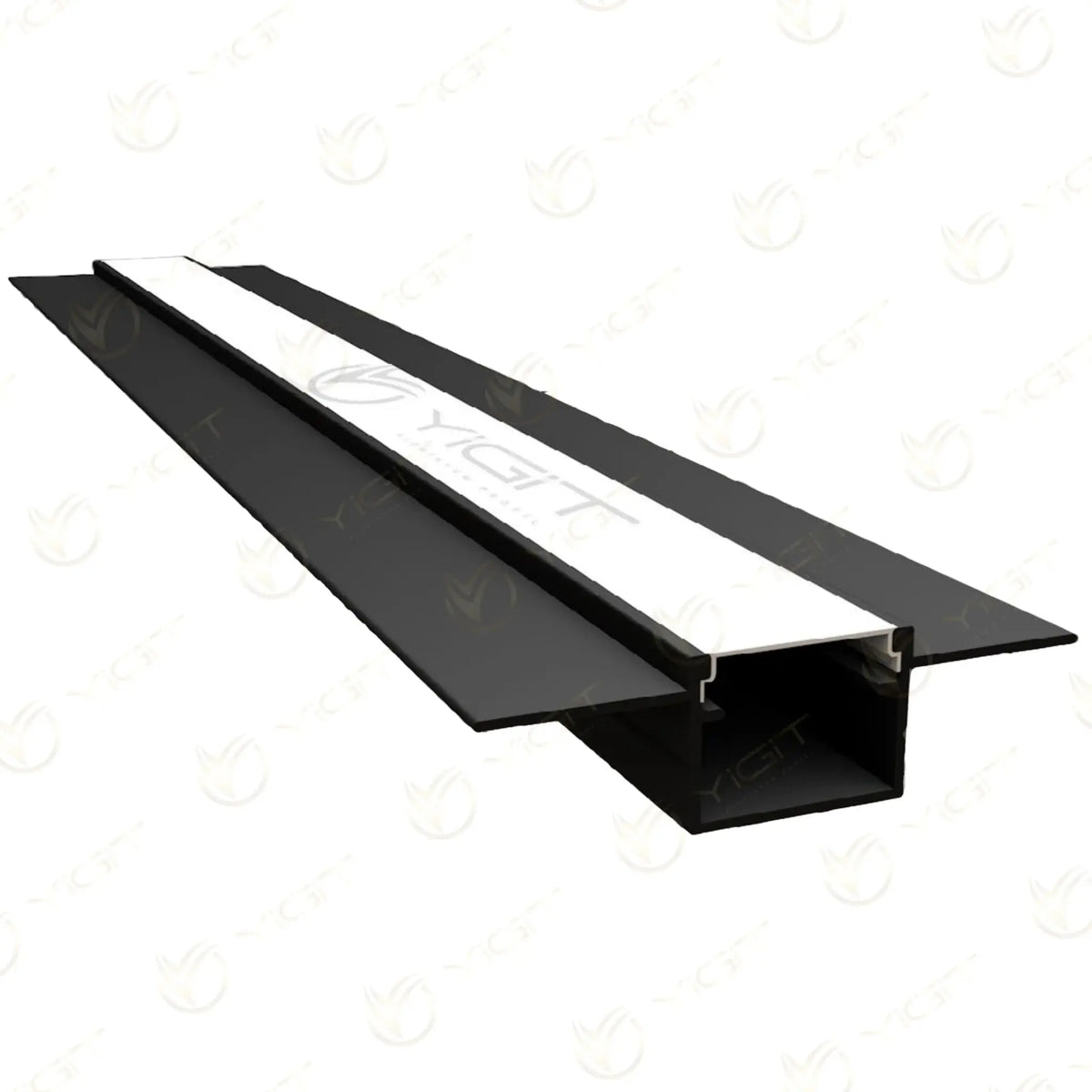

1.5 cm Slim LED Profile

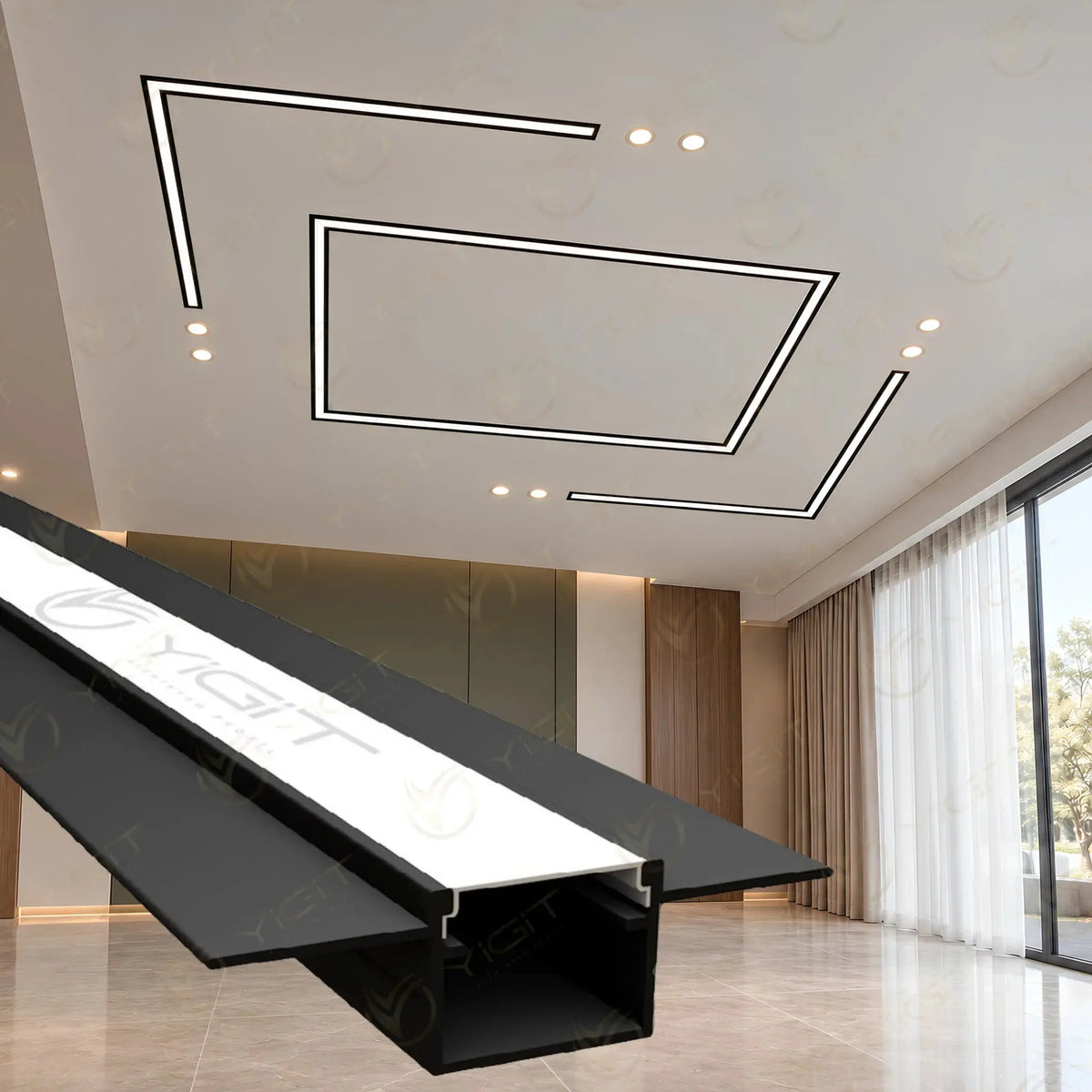

The 1.5 cm Slim Plasterboard LED Profile combines a thin line of light with a visible side frame on plasterboard surfaces. The aluminium model, code Y31, suits linear ceiling designs with its central LED channel and flat flanges; the black surface can create a clear contrast with a light-coloured cover.

Technical specifications
Product code
Y31
Material
Aluminium

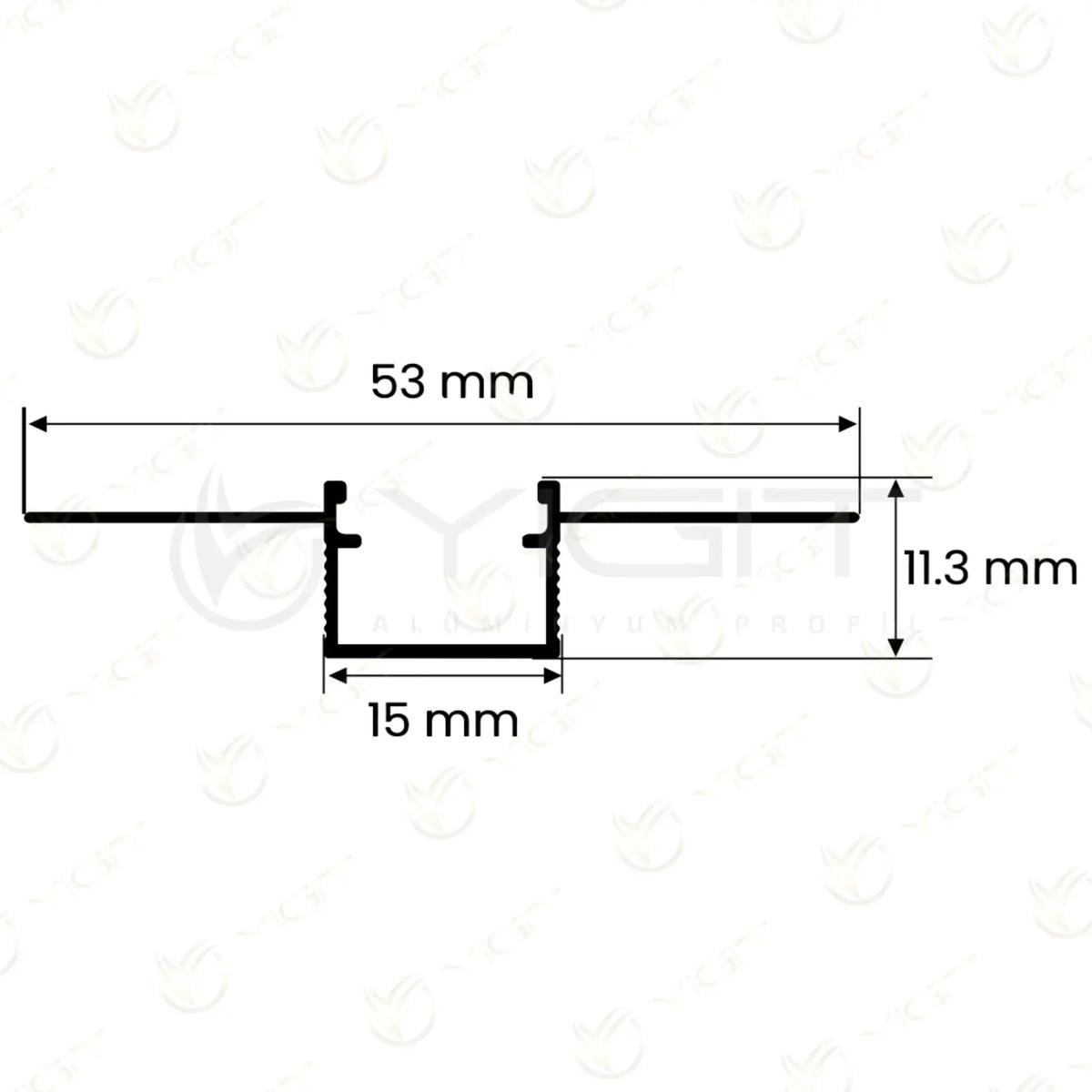

Section dimensions
Overall width 53 mm · body outer width 15 mm · height 11.3 mm
Standard profile length
3 m

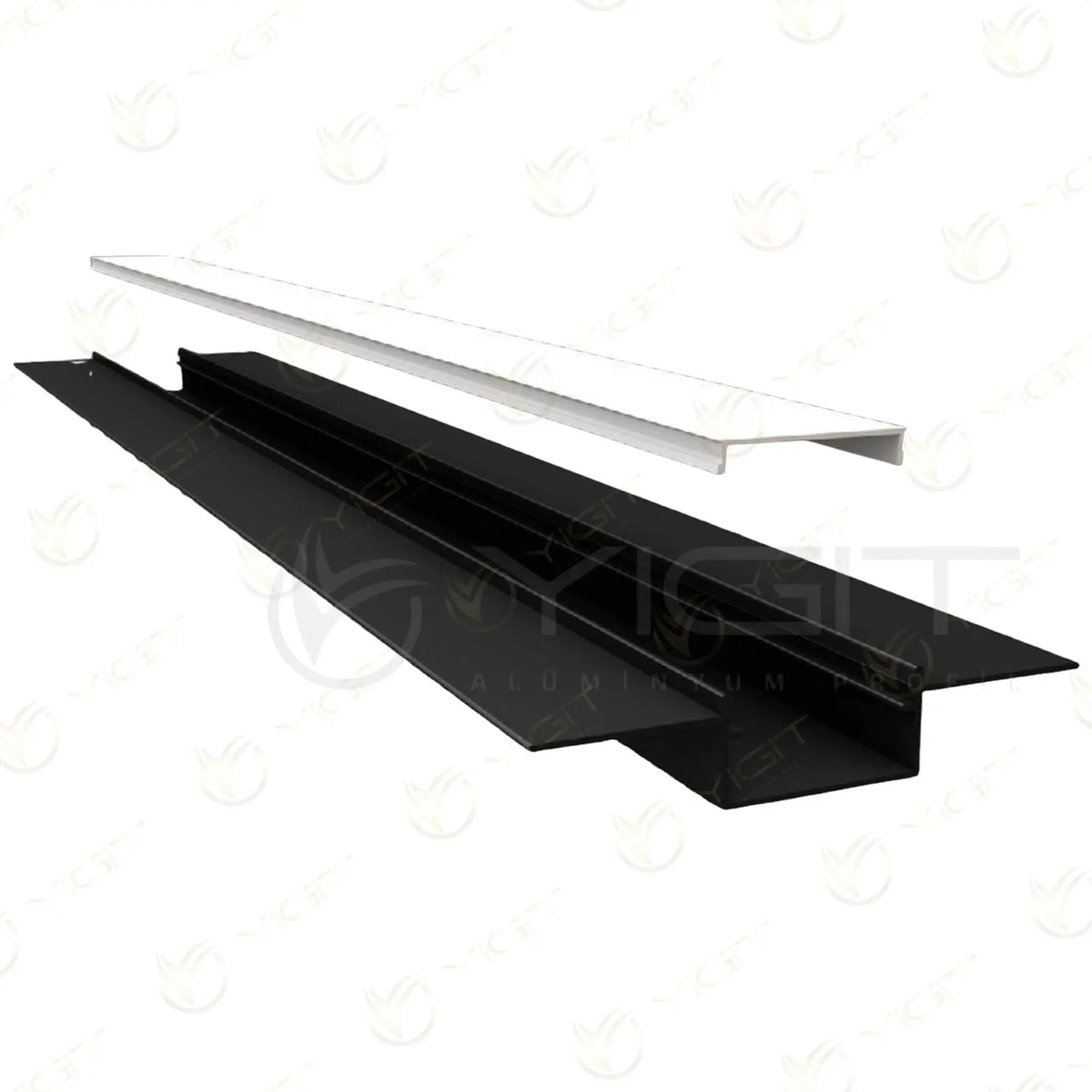

Cover options
Polycarbonate cover / flexible cover
Surface options
Black / custom paint colours
Highlights

  • Thin-framed plasterboard LED profile

    The 15 mm body outer width helps to set up a narrow line of light. The side flanges form the visible edges of the finished design.

  • Slim recessed LED channel

    The unperforated flange structure gives a clean frame effect around the profile. The surface cut-out and the seating of the flanges are planned together.

  • Black and custom paint options

    The surface colour can be chosen to contrast with the ceiling or to follow the metal details in the decoration. The linear appearance is retained even when the light is off.

  • Cover alternatives

    Polycarbonate and flexible covers can be considered according to the application line. The appearance of the light line is determined by the chosen combination of LED strip and cover.

Applications and model selection

It can be used in living room ceilings, corridors, meeting rooms and geometric plasterboard compositions. In projects where the frame is meant to remain visible, the Slim section makes the line a design element.

Installation and Model Compatibility

A channel suited to the profile body is prepared and the profile is fixed in line with the surface. The visible flanges are kept clean and are not covered with finishing materials. The LED strip is selected to suit the inner seat. Corner cuts and cover joints are planned before application so that the frame appears continuous.

Made to order

Bulk Order Request

Product
1.5 cm Slim LED Profile Y31
metre

Include the unit. Write "Standard size" if you need the standard size.

Required fields · Personal data notice (KVKK)

How is it installed?

  1. Measure and cut

    Mark the profile to the length required and cut it straight with a metal-cutting saw.

  2. Fit the LED strip

    Remove the backing tape from the strip and press it along the full length of the channel base to stick it down.

  3. Route the cable out

    Take the power cable out through the end of the profile or through a hole you have drilled.

  4. Fix the profile

    Fix the profile to the mounting surface with clips, screws or adhesive.

  5. Fit the cover

    Press the cover into the channel until it seats, then fit the end caps.

How is the cover fitted?

  1. Start from one end

    Insert one end of the cover into the channel at the end of the profile.

  2. Press along the full length

    Press the cover with your thumb to seat it in the channel along the profile.

  3. Fit the end caps

    Close both ends of the profile with the end caps.

LED profile or spotlight?

Spot lighting LED profile
Appearance of the light Separate points of light on the ceiling A single, continuous line of light
Light distribution Bright under the spotlight, shadowed in between Even along the profile
Glare The light source is directly visible The cover diffuses the light and hides the source
Mark on the ceiling A separate hole for each spotlight A single thin line

Application Ideas

  • Application Ideas 1
  • Application Ideas 2
  • Application Ideas 3
  • Application Ideas 4
  • Application Ideas 5
  • Application Ideas 6
  • Application Ideas 7
  • Application Ideas 8
  • Application Ideas 9
  • Application Ideas 10
  • Application Ideas 11
  • Application Ideas 12
  • Application Ideas 13
  • Application Ideas 14
  • Application Ideas 15
  • Application Ideas 16
  • Application Ideas 17
  • Application Ideas 18
  • Application Ideas 19
  • Application Ideas 20
  • Application Ideas 21
  • Application Ideas 22
  • Application Ideas 23
  • Application Ideas 24
  • Application Ideas 25
  • Application Ideas 26

LED strip comparison

More chips per metre, more uniform light.

  • 60-Chip LED Strip

    Distinct points of light

    60-Chip LED Strip

  • 120-Chip LED Strip

    More closely spaced points of light

    120-Chip LED Strip

  • 240-Chip LED Strip

    A more uniform, smooth line of light

    Recommended choice

    240-Chip LED Strip

  • COB LED Strip

    Dot-free, continuous line of light

    Recommended choice

    COB LED Strip

Representative comparison for the same profile and diffuser.

Where is it used?

All applications

Frequently asked questions

Which colour options are available?

Colour and finish options vary by product. For products with more than one option, the selection is made in the purchase area. For products with a single finish, the finish is stated under Product Specifications. For colours outside the standard options, you can submit a custom colour request with a RAL code.

Can I get a price for project and wholesale orders?

Yes. If you send us the project quantity and the application area on our WhatsApp line, we will prepare a quote for you.

Can I see a sample before buying?

Yes. With the sample button on the product page you can add a 10 cm sample of this profile to your cart. The sample appears as a separate line in the cart.
