Y6247 Alçıpan Gizli Köşe LED Profili Yiğit Alüminyum

LED Profiles

Y6247 Plasterboard Concealed Corner LED Profile

Price on request

For prices and delivery terms, contact our export team. Tell us the product, size, colour, quantity and destination country.

Message us on WhatsApp
Custom colour request Min. 300 m

The minimum order for custom colour production is 300 metres.

metre
Request custom colour on WhatsApp (opens in a new tab)
Request a sample

Product specifications

Y6247 Plasterboard Concealed Corner LED Profile

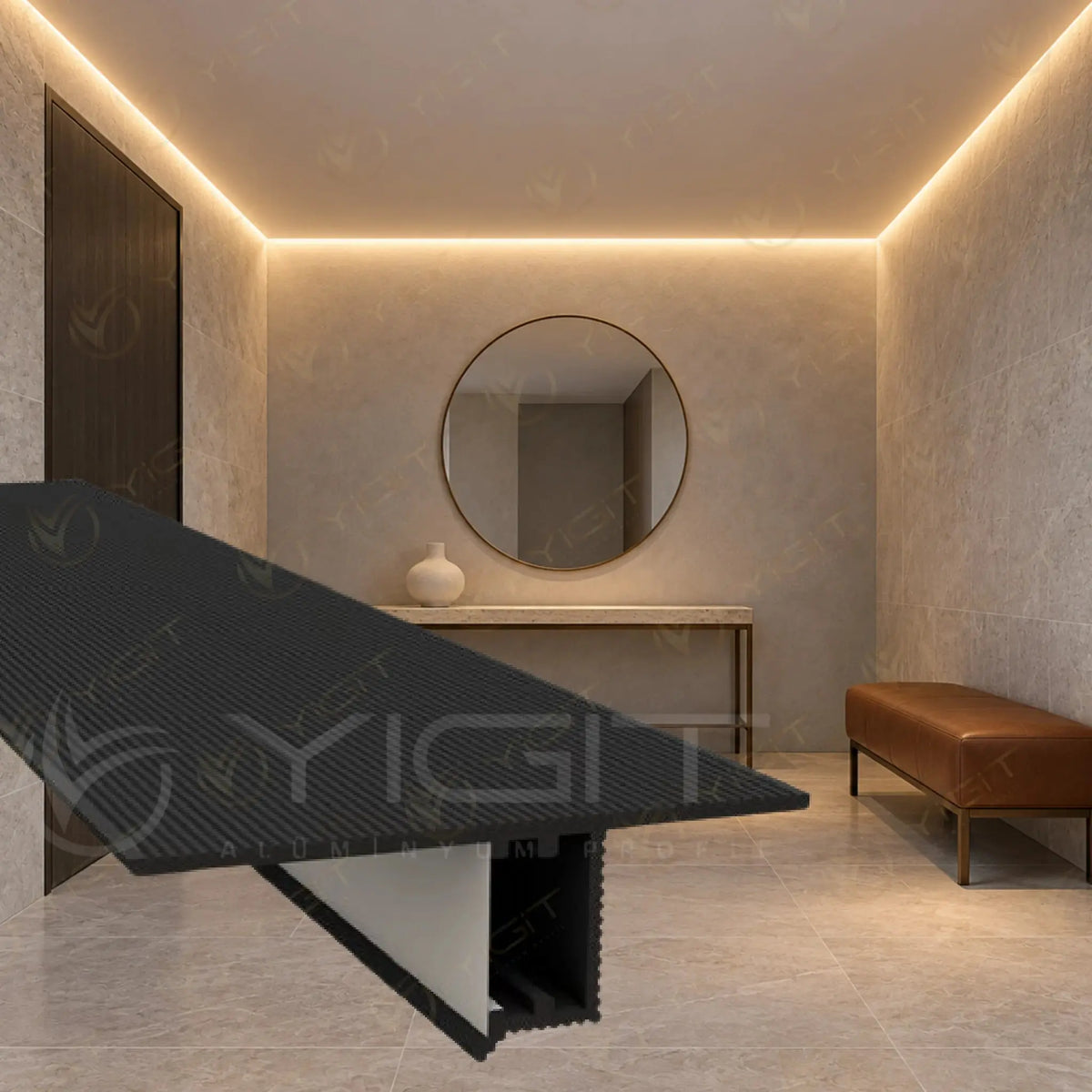

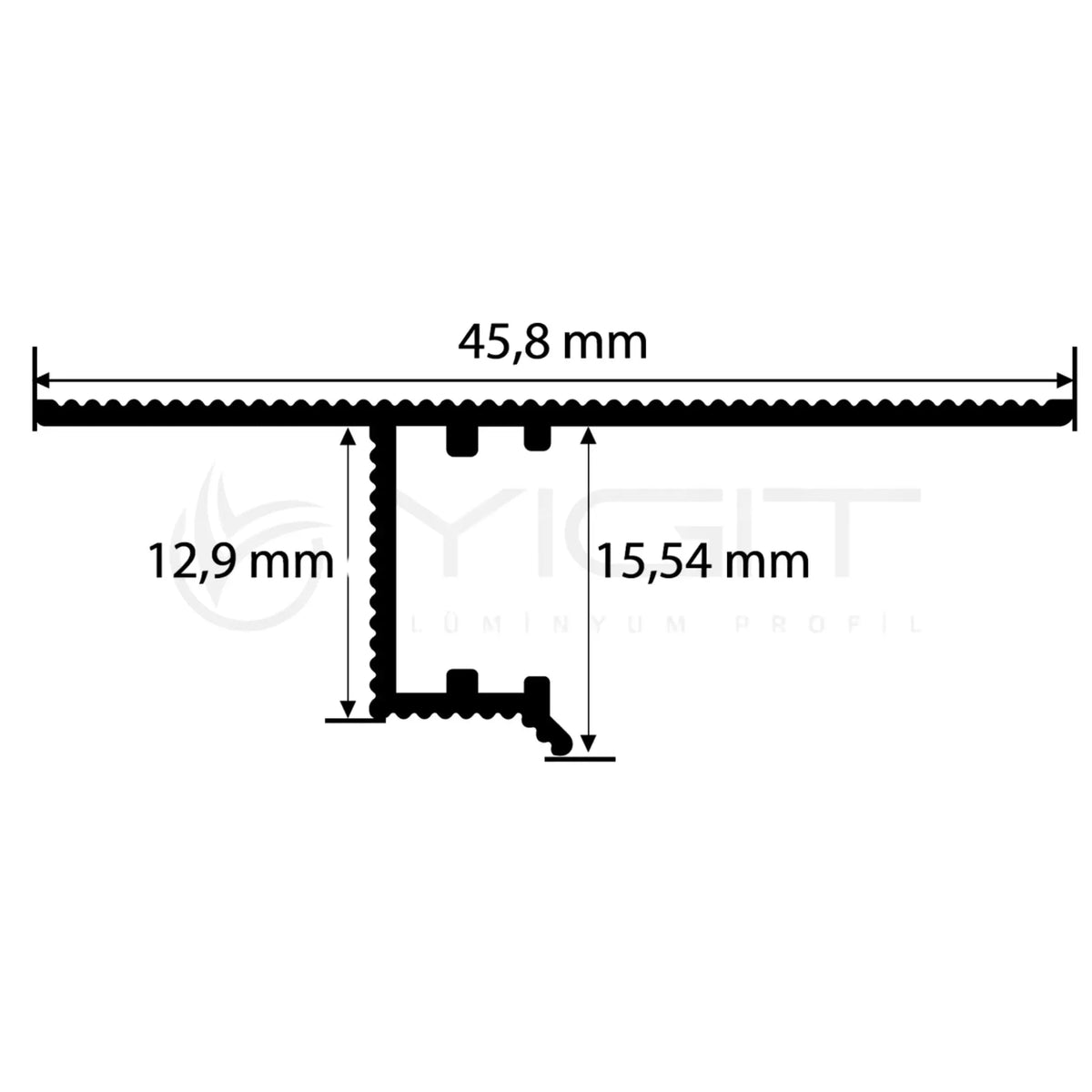

The Y6247 Plasterboard Hidden Corner LED Profile forms an illuminated edge detail with its wide flat flange and side-opening LED channel. The aluminium section is used to define the surface boundary at plasterboard junctions and to highlight that boundary with lighting. The 45.8 mm width shown in the drawing provides a reference for the layout plan.

Technical specifications
Product code
Y6247
Material
Aluminium
Section dimensions
Overall width 45.8 mm · overall height 15.54 mm
Surface options
Black / white / mill finish (as extruded) / custom paint colours
Highlights

  • Wide-flanged hidden corner profile

    The horizontal extension of the section governs the relationship of the profile to the adjacent surface. The position of the flange in the application is determined together with the finished surface level.

  • Plasterboard edge LED channel

    The light channel is positioned beneath the flange and opens to the side. This arrangement can be used to illuminate an edge or a step line.

  • 15.54 mm overall height

    The compact channel projection is used when planning the installation gap. The internal volume of the channel and the outer section dimensions are assessed separately.

  • Surface colour alternatives

    Black, white, mill finish and custom paint options allow the visible parts to be matched to the decoration. The daytime appearance of the profile is also taken into account in the finish design.

Applications and model selection

It can be used on plasterboard ceiling edges, around niches and in wall details that call for a side-opening line of light. The project section is assessed in terms of the surface on which the wide flange will sit and the direction of the light.

Installation and Model Compatibility

The profile is dry-fitted together with the building layers and then installed. The LED opening is protected during fixing and finishing work. The strip and the cover are selected according to the internal section and the seat. Access to the cable connections and the space for removing the cover are planned before the surfaces are finished.

Made to order

Bulk Order Request

Product
Y6247 Plasterboard Concealed Corner LED Profile
pcs

Include the unit. Write "Standard size" if you need the standard size.

Required fields · Personal data notice (KVKK)

How is it installed?

  1. Measure and cut

    Mark the profile to the length required and cut it straight with a metal-cutting saw.

  2. Fit the LED strip

    Remove the backing tape from the strip and press it along the full length of the channel base to stick it down.

  3. Route the cable out

    Take the power cable out through the end of the profile or through a hole you have drilled.

  4. Fix the profile

    Fix the profile to the mounting surface with clips, screws or adhesive.

  5. Fit the cover

    Press the cover into the channel until it seats, then fit the end caps.

How is the cover fitted?

  1. Start from one end

    Insert one end of the cover into the channel at the end of the profile.

  2. Press along the full length

    Press the cover with your thumb to seat it in the channel along the profile.

  3. Fit the end caps

    Close both ends of the profile with the end caps.

LED profile or spotlight?

Spot lighting LED profile
Appearance of the light Separate points of light on the ceiling A single, continuous line of light
Light distribution Bright under the spotlight, shadowed in between Even along the profile
Glare The light source is directly visible The cover diffuses the light and hides the source
Mark on the ceiling A separate hole for each spotlight A single thin line

LED strip comparison

More chips per metre, more uniform light.

  • 60-Chip LED Strip

    Distinct points of light

    60-Chip LED Strip

  • 120-Chip LED Strip

    More closely spaced points of light

    120-Chip LED Strip

  • 240-Chip LED Strip

    A more uniform, smooth line of light

    Recommended choice

    240-Chip LED Strip

  • COB LED Strip

    Dot-free, continuous line of light

    Recommended choice

    COB LED Strip

Representative comparison for the same profile and diffuser.

Where is it used?

All applications

Frequently asked questions

Which colour options are available?

Colour and finish options vary by product. For products with more than one option, the selection is made in the purchase area. For products with a single finish, the finish is stated under Product Specifications. For colours outside the standard options, you can submit a custom colour request with a RAL code.

Can I get a price for project and wholesale orders?

Yes. If you send us the project quantity and the application area on our WhatsApp line, we will prepare a quote for you.

Can I see a sample before buying?

Yes. With the sample button on the product page you can add a 10 cm sample of this profile to your cart. The sample appears as a separate line in the cart.
