Shelf Profile

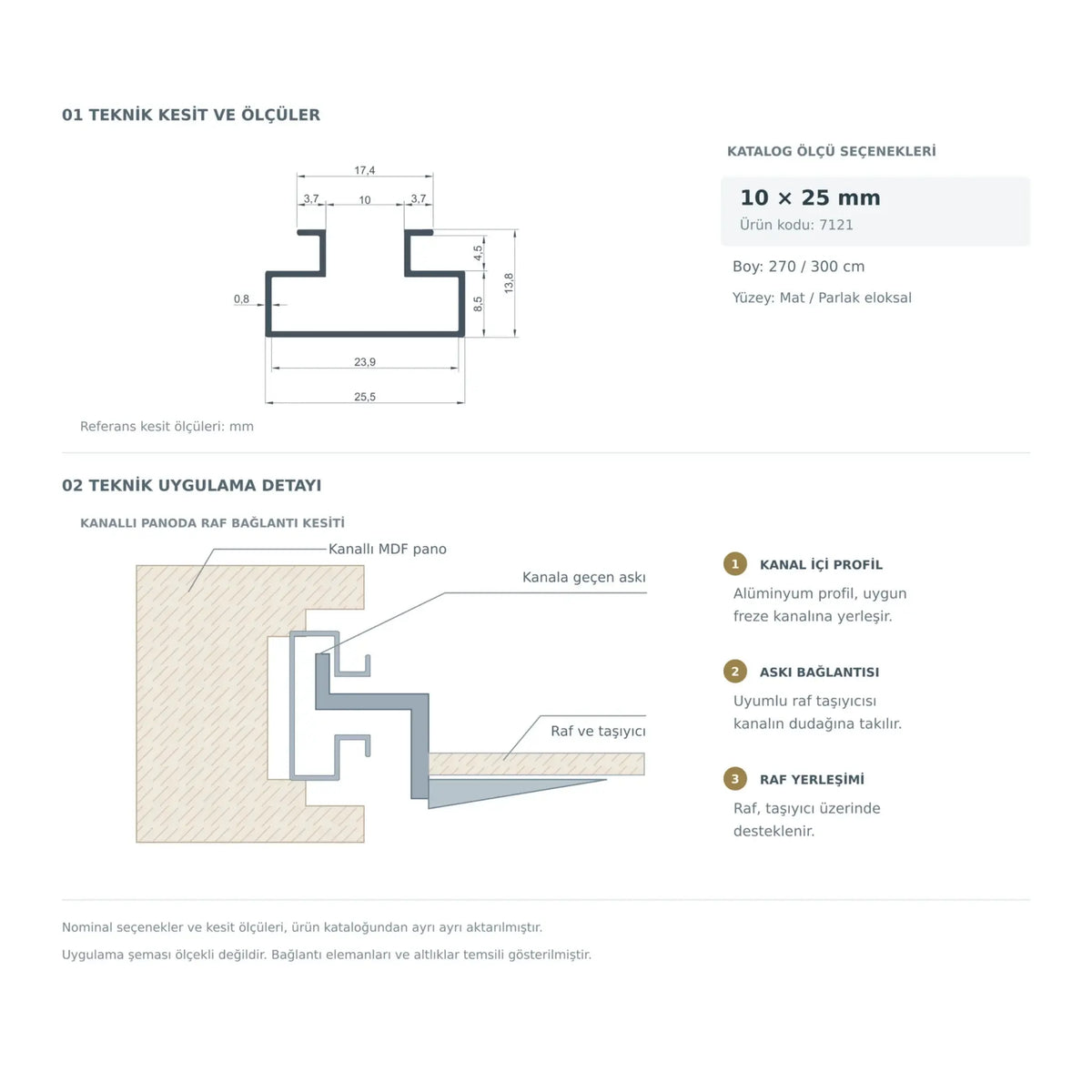

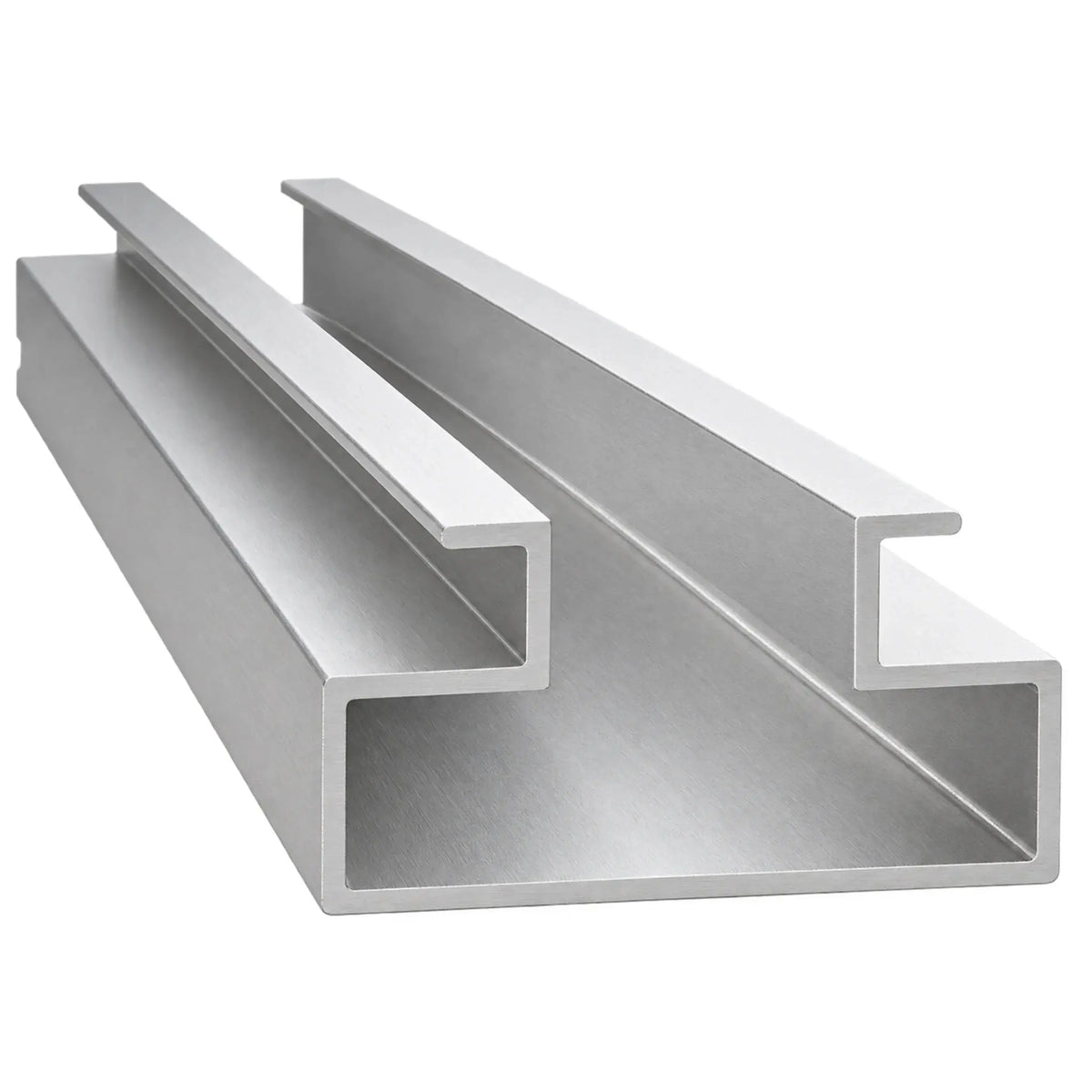

The aluminium shelf profile forms a fitting line inside a slotted furniture panel to which shelf brackets are attached. Its open top section and the body that sits inside the panel arrange the connection section to be used with compatible hangers or brackets.

Technical specifications
Material
Aluminium
Catalogue size / nominal
10 × 25 mm
Section / use
Shelf bracket connection inside a slotted panel
Surface finishes
Matt, polished and other paint colours
Highlights

  • Fitting into the panel slot

    The aluminium slotted-panel profile is set into a suitable routed slot and completes the connection line with a metal section.

  • Hanger connection opening

    The channel at the top is the section where the compatible shelf bracket seats and works together with the profile section.

  • Setting out the shelf layout

    The shelf channel profile defines the line along which shelves and display elements are positioned on the panel.

  • Selection by system

    The 10×25 mm nominal section is compared with the panel thickness and the actual dimensions of the bracket connection.

Applications and model selection

It can be used as a shelf connection profile in furniture and shop display panels. The shelf load, the bracket form and the fixing of the panel must be calculated together; load capacity should not be inferred from the profile size alone.

Installation and System Compatibility

The panel slot is prepared to the actual section; the profile is dry-fitted in the slot. The seating of the compatible bracket is checked and the connections are completed according to the system requirements. The shelf, the bracket and the panel are assessed as a whole.
