Paslanmaz Çelik Eğim Profili (Meyil Profili) Yiğit Alüminyum

Stainless Steel Slope Profiles

Stainless Steel Slope Profile

Price on request

For prices and delivery terms, contact our export team. Tell us the product, size, colour, quantity and destination country.

Message us on WhatsApp
Request a sample

Product specifications

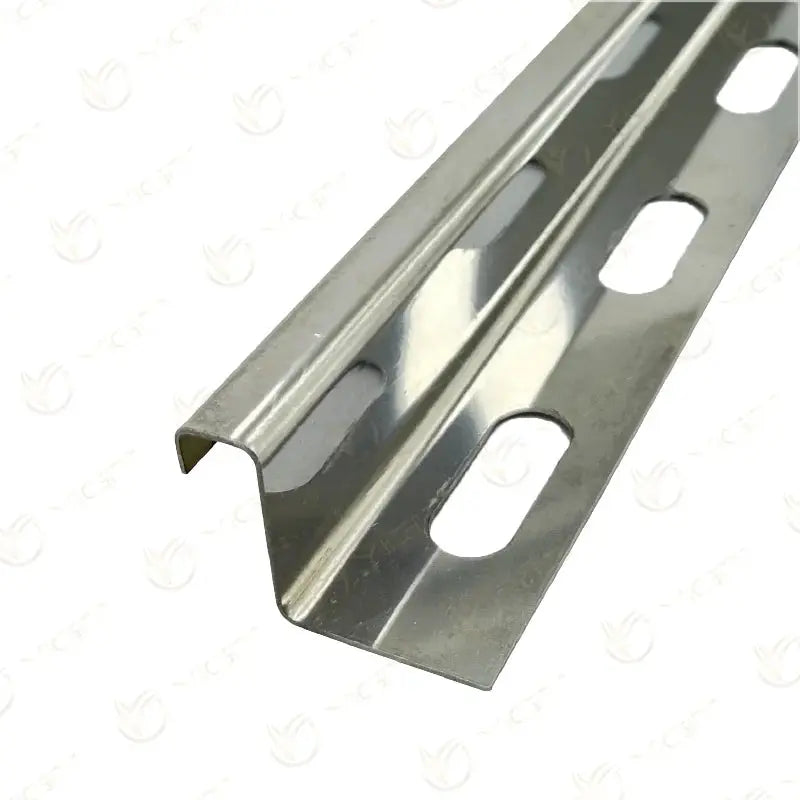

Stainless Steel Slope Profile

The stainless steel slope profile is an edge trim profile used to finish the edge of a sloped covering in showers and similar wet areas. The stainless steel section, also known as a fall profile, forms a regular metal line at the side boundary of the sloped tile surface.

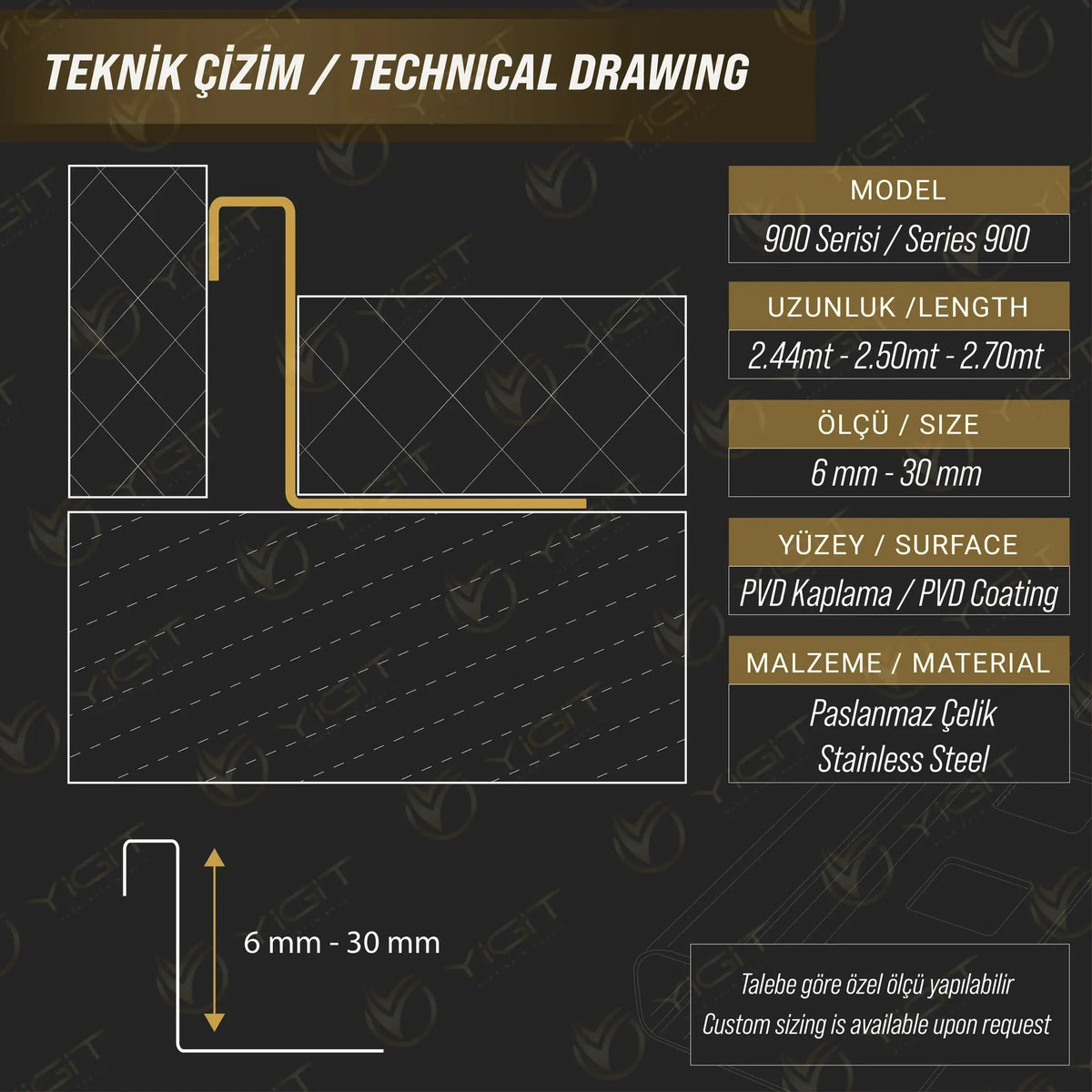

Technical specifications
Material
Stainless steel
Section shape
Upright finishing face
Section height
6–30 mm
Position
Perforated flange beneath the covering
Profile length
2.44 / 2.50 / 2.70 m
Highlights

  • Upright edge termination

    The stainless steel slope profile finishes the open edge of the sloped covering with a vertical metal face.

  • Perforated bottom flange

    The fixing part is positioned beneath the covering during tiling.

  • 6–30 mm section height

    The profile size is assessed together with the level and the covering thickness in the application.

  • Compatibility with the drainage detail

    The position of the profile is planned taking into account the existing slope of the floor and the direction in which water drains.

Applications and model selection

It can be used at the side terminations of shower areas and at the edges of sloped tile surfaces. The shower slope profile is selected together with the covering layout and the position of the drain.

Installation and Covering Compatibility

The slope and the finished covering levels are measured before application. The profile is dry-fitted to this line and set in a suitable bed. Waterproofing and the drain connection are completed with separate system details; water ponding is checked at the end of the application.
