Kare U Bitim Profili Yiğit Alüminyum

Images are representative; the colour and size you select may differ from the image.

Threshold and Transition Profiles

Square U Edge Profile

Price on request

For prices and delivery terms, contact our export team. Tell us the product, size, colour, quantity and destination country.

Message us on WhatsApp
Request a sample

Product specifications

Square U Edge Profile

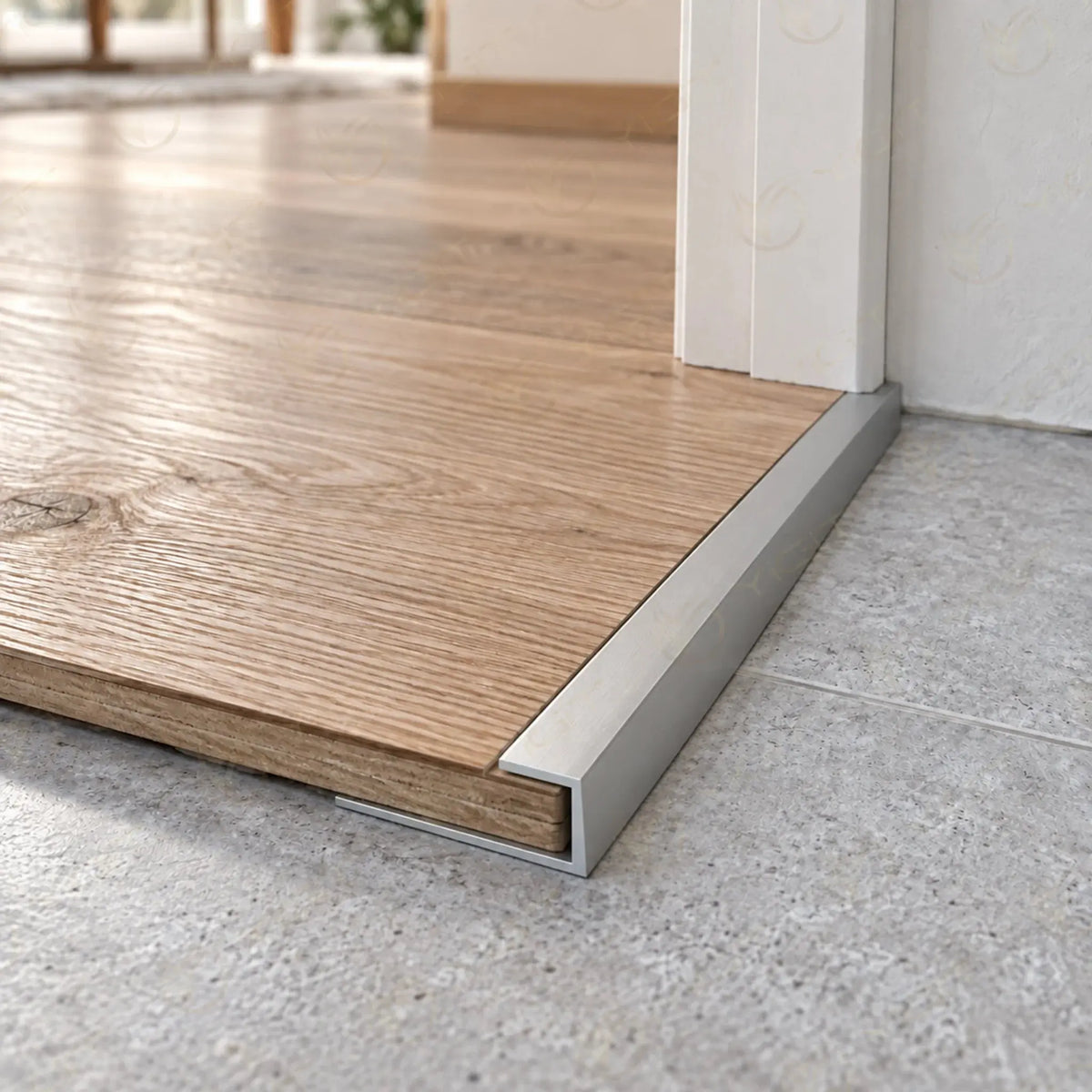

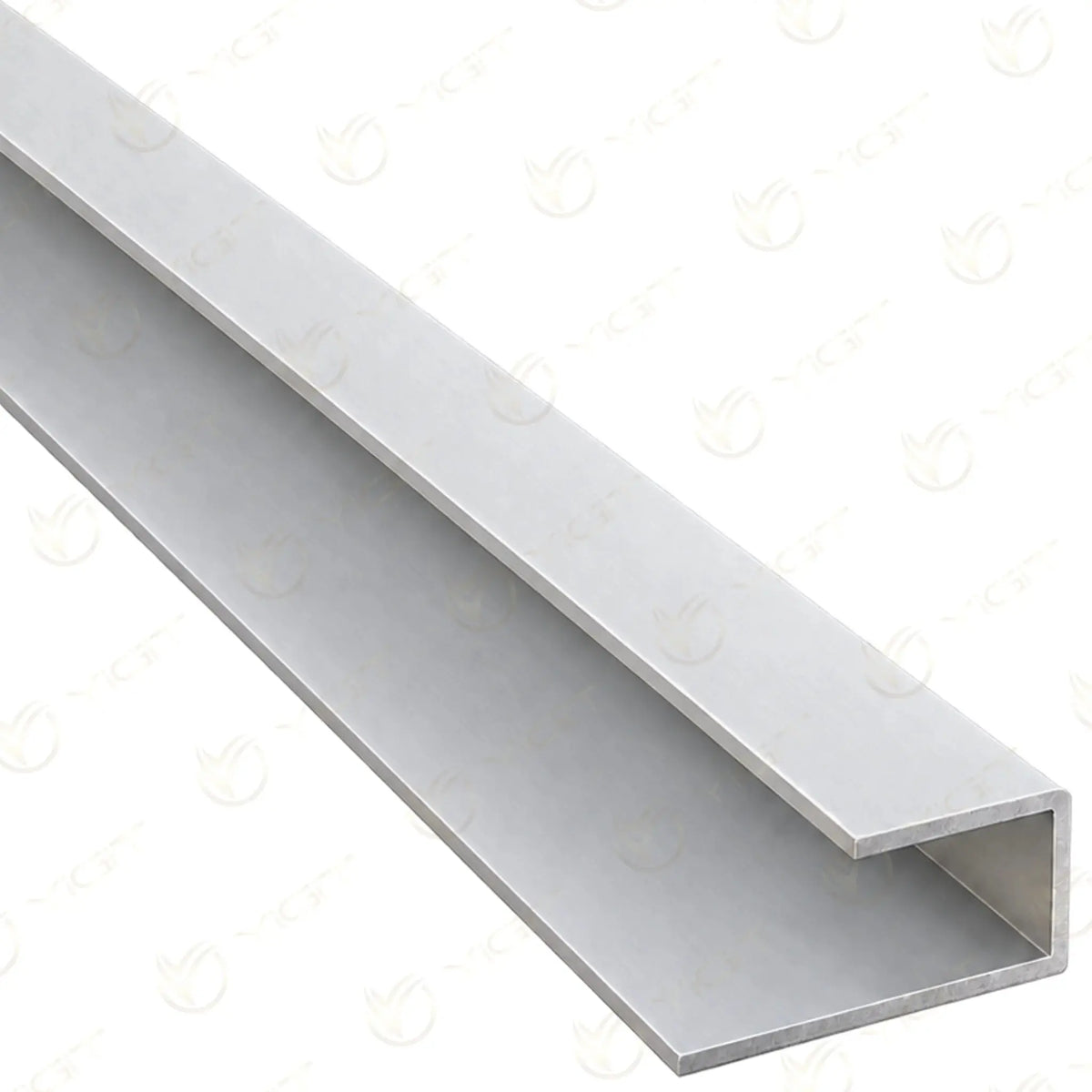

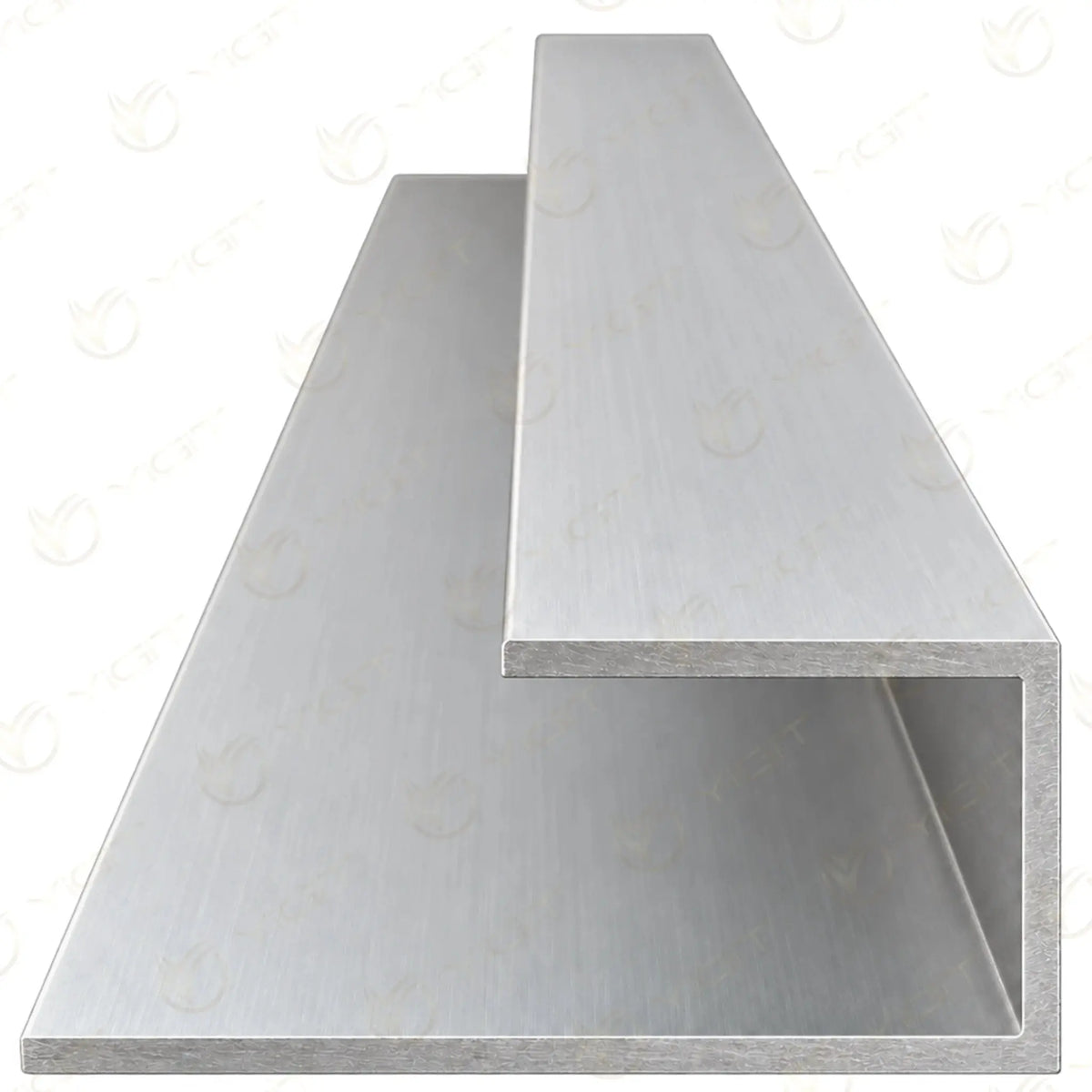

The square U edge trim profile closes the open edge of parquet flooring with an aluminium section that has a flat side face. The lower flange, which sits under the parquet, and the short upper flange enclose the end of the covering in a U shape.

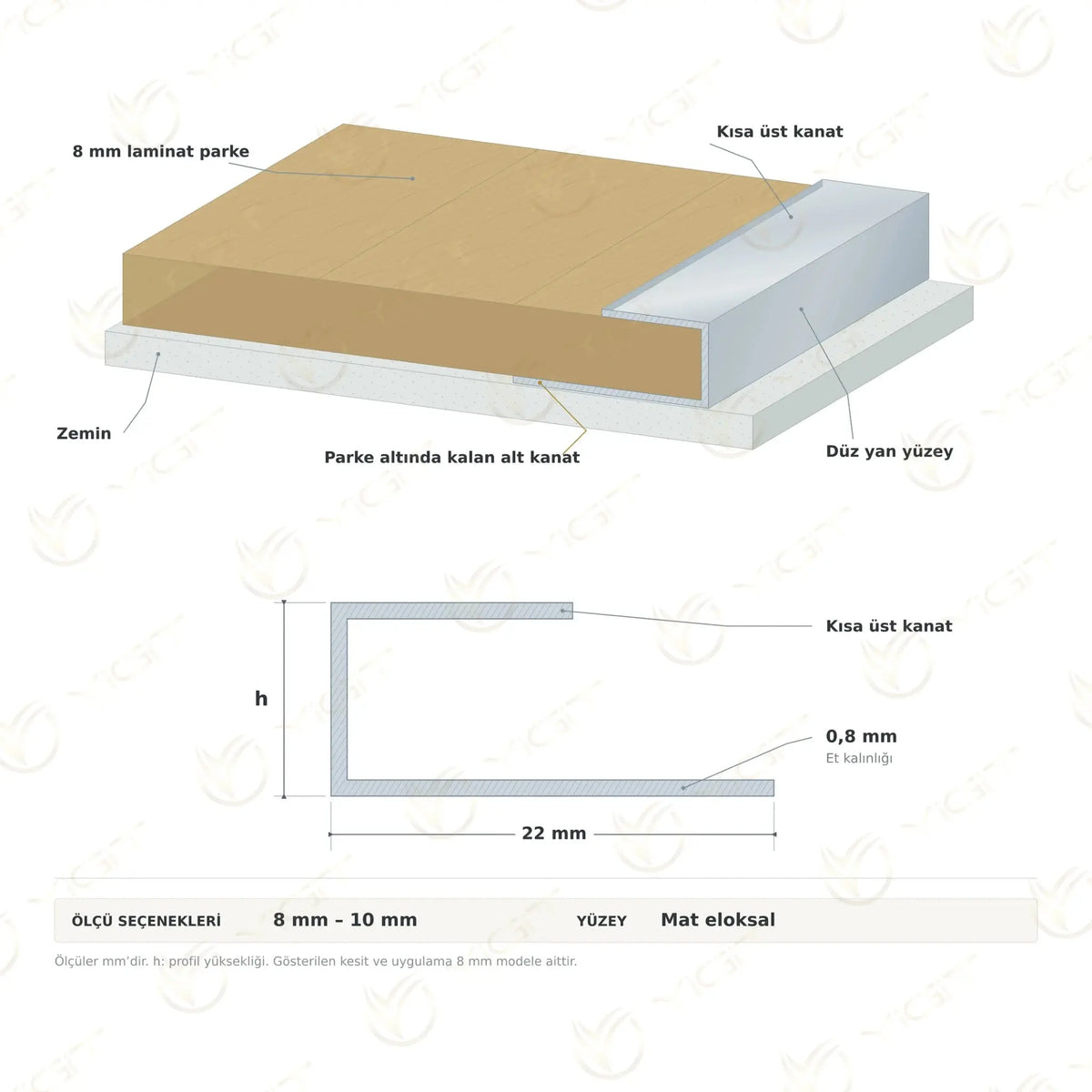

Technical specifications
Material
Aluminium
Size definition
8 or 10 mm model definition
Section / connection
Square U section, short upper and long lower flange
Surface finishes
Matt
Profile length
2.7 m
Highlights

  • Flat side face

    The square parquet edge trim profile forms a plain, angular metal line where the covering ends.

  • U-shaped edge cover

    The lower and upper flanges provide a finishing detail that encloses the parquet end from both sides.

  • Positioned under the covering

    The lower flange is the connection and seating section planned together with the parquet installation.

  • Two size definitions

    The 8 and 10 mm options are assessed together with the actual parquet thickness and the application allowance.

Applications and model selection

It can be used for parquet edge finishes, covering ends that approach fixed surfaces and open edge details. The choice of square U parquet profile depends on the movement allowance to be left at the edge as well as the covering thickness.

Installation and Floor Compatibility

The position of the lower flange is planned before the covering is laid. The parquet end is dry-fitted in the profile channel; the required movement space is maintained without the board being pinched. The fixing method is selected to suit the installation requirements of the parquet system.

Made to order

Bulk Order Request

Product
Square U Edge Profile Y6070
pcs

Include the unit. Write "Standard size" if you need the standard size.

Required fields · Personal data notice (KVKK)

Direct from the manufacturer

Yiğit Alüminyum has been manufacturing aluminium profiles since 2007. See our production process, from die to dispatch.

View the production process
