F Profili Yiğit Alüminyum

Plasterboard Profiles

F Profile

Price on request

For prices and delivery terms, contact our export team. Tell us the product, size, colour, quantity and destination country.

Message us on WhatsApp
Custom colour request Min. 500 m

The minimum order for custom colour production is 500 metres.

metre
Request custom colour on WhatsApp (opens in a new tab)
Request a sample

Product specifications

F Profile

The plasterboard F profile tidies the edge line in details where horizontal and vertical plasterboards meet. The F-shaped aluminium section, with flanges extending in different directions, helps position the board edges within the same junction.

Technical specifications
Material
Aluminium
Section
F-shaped
Total height in the drawing
30.20 mm
Vertical opening between flanges
13.10 mm
Horizontal flange in the drawing
14.20 mm
Highlights

  • F-shaped junction

    The aluminium F profile forms a defined finish at the point where the boards meet at right angles.

  • Flanges at two levels

    The horizontal extensions on the same body allow the upper and lower limits of the junction to be set out.

  • Placement with the metal substructure

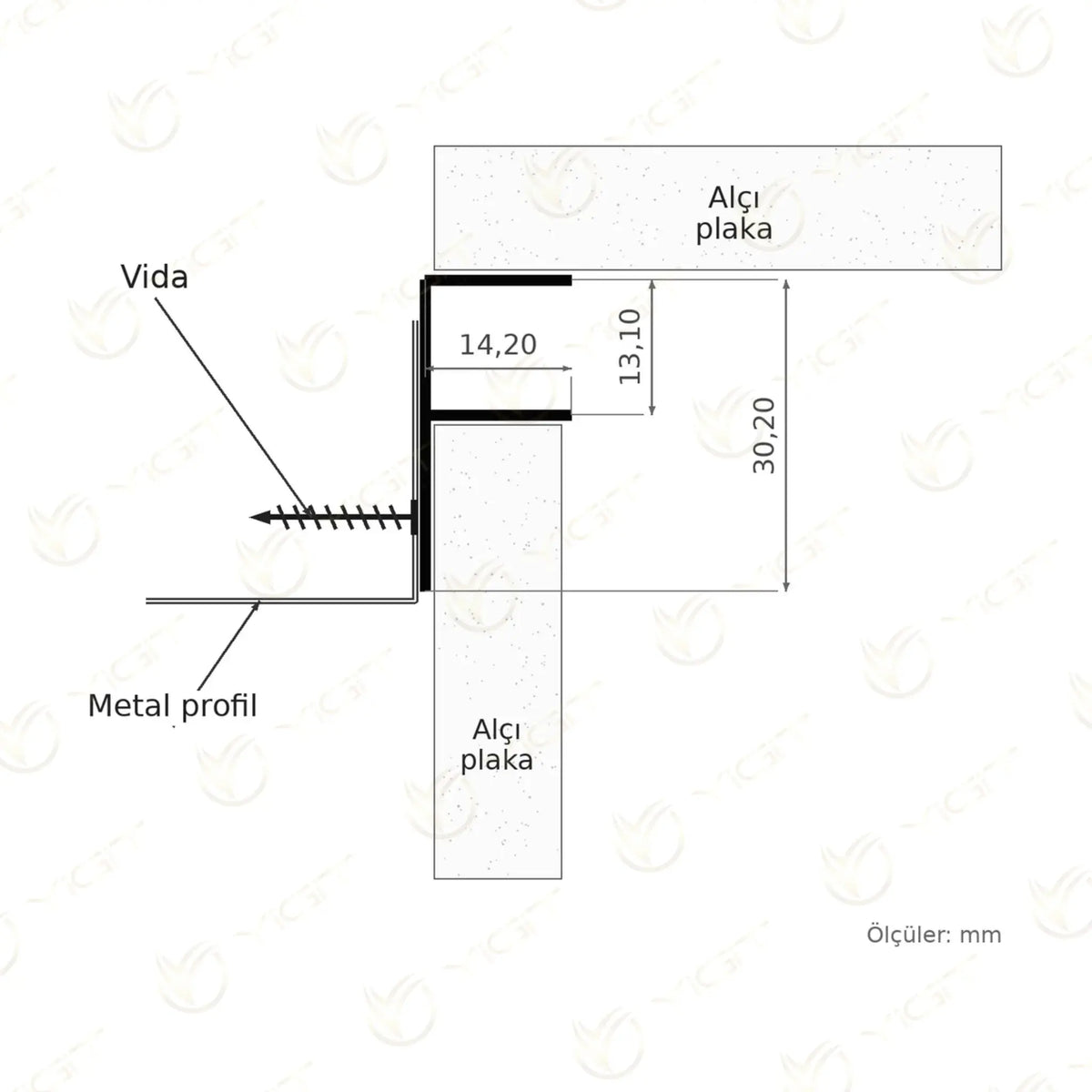

    The source application drawing shows how the profile relates to the metal substructure and the plasterboards.

  • Distinct edge line

    The visible edge completes the junction of the ceiling and wall planes with a straight line.

Applications and model selection

The suspended ceiling F profile can be considered for ceiling edges and plasterboard returns. When choosing a plasterboard corner junction profile, the direction of the horizontal and vertical boards, the finished surface level and the placement of the flanges are examined together.

Installation and Covering Compatibility

The profile is dry-fitted with the boards and aligned to the metal substructure. The fixing and surface finishing method is determined by the application system. The opening shown in the drawing does not on its own guarantee a fit for a specific board thickness.
