12X45 Kanatlı LED Profili Yiğit Alüminyum

Images are representative; the colour and size you select may differ from the image.

LED Profiles

12×45 Flanged LED Profile

Price on request

For prices and delivery terms, contact our export team. Tell us the product, size, colour, quantity and destination country.

Message us on WhatsApp
Custom colour request Min. 300 m

The minimum order for custom colour production is 300 metres.

metre
Request custom colour on WhatsApp (opens in a new tab)
Request a sample

Product specifications

12×45 Flanged LED Profile

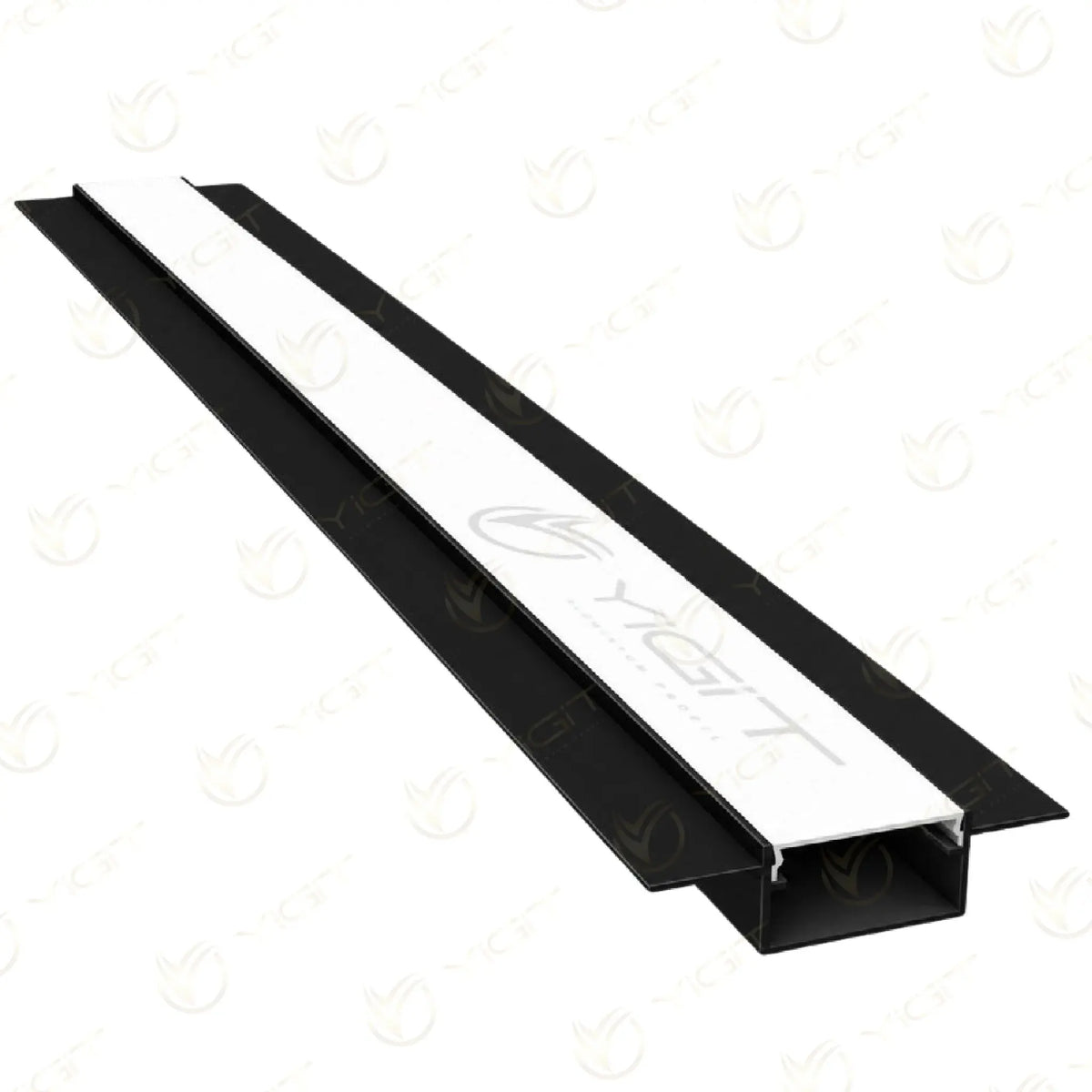

The 12 × 45 Flanged LED Profile is an aluminium model with wide flanges on both sides of its 22 mm outer body. The section, code Y6372, finishes a recessed line of light with a pronounced frame. The mill finish, matt and painted options allow the visible edges to be matched to the other surfaces in the space.

Technical specifications
Product code
Y6372
Material
Aluminium
Section dimensions

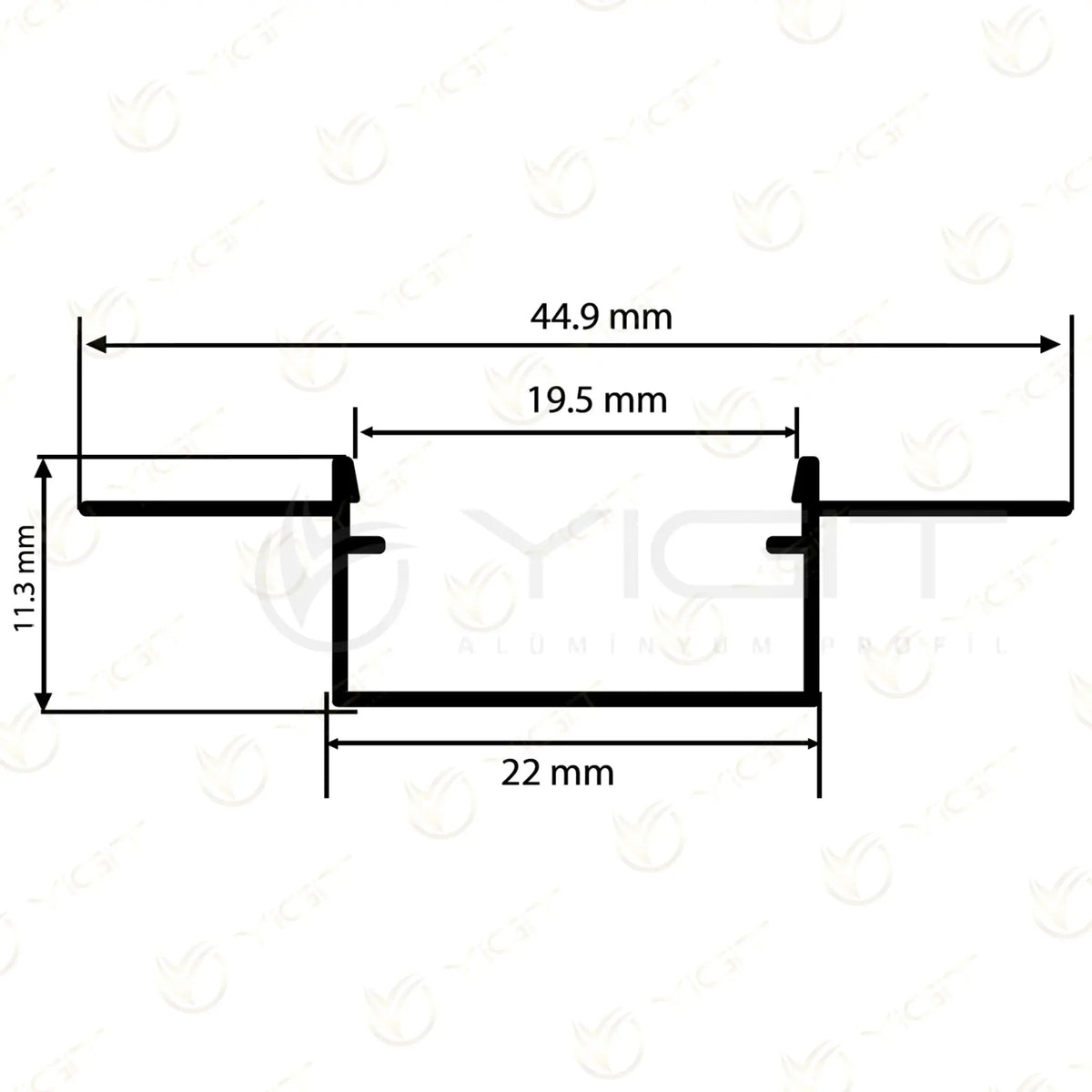

Total width 44.9 mm · outer body width 22 mm · height 11.3 mm
Standard profile length
3 m
Surface options
Mill finish / matt / painted
Highlights

  • Wide-framed recessed LED profile

    The wide section, including the flanges, forms a pronounced frame around the lighting. In the design, the light band and the metal edges are considered together.

  • Flanged LED profile with 22 mm body

    The body sits in the channel prepared in the surface. This dimension is separate from the total flange width; the inner seat is checked for LED compatibility.

  • 11.3 mm section height

    The height helps in planning the recessed installation depth. The seating of the profile on the surface and the connection space are arranged together.

  • Frame matched to the surface

    The appearance of the flanges can be changed with the mill finish, matt or painted options. On dark surfaces in particular, the contrast of the line is part of the design decision.

Applications and model selection

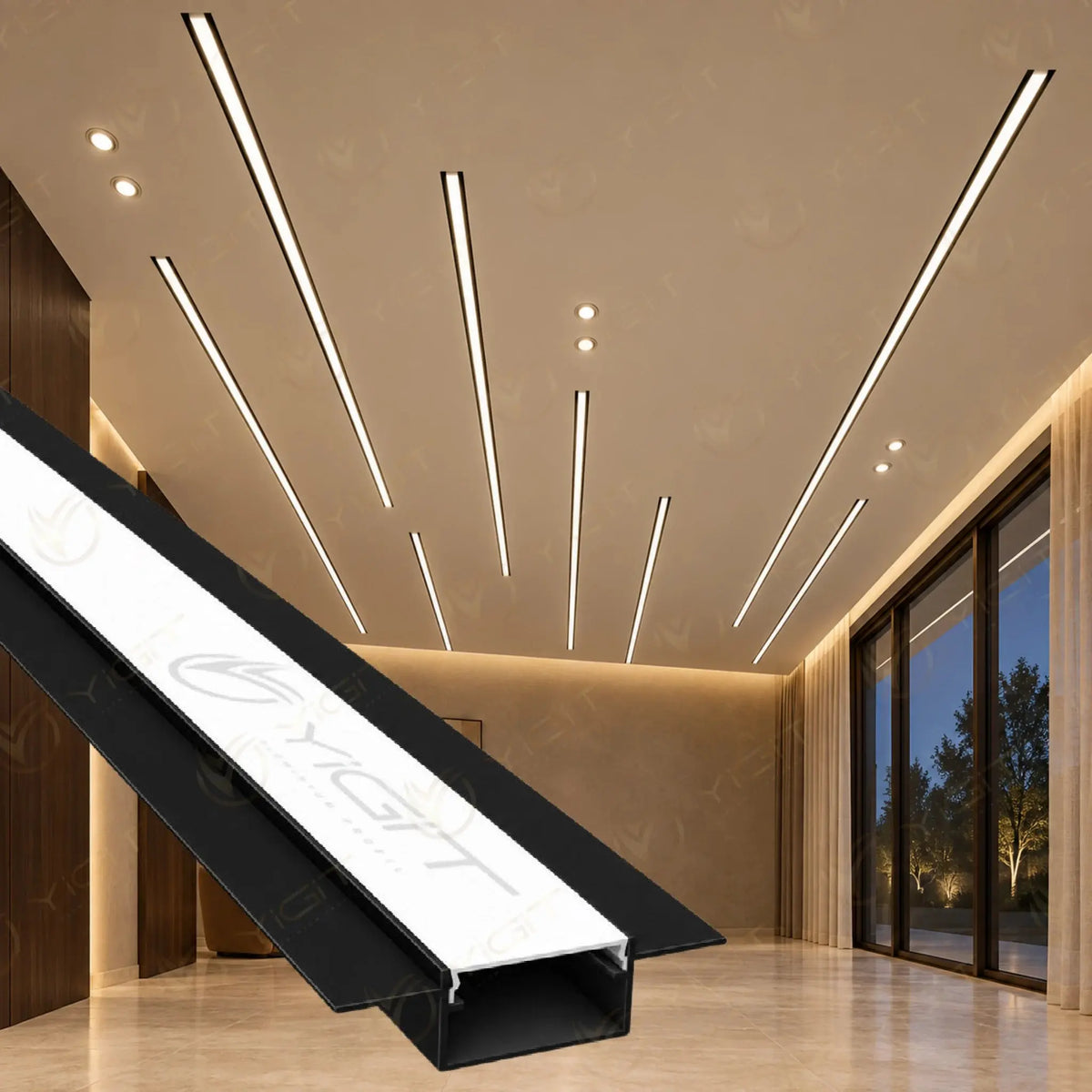

It can be used in furniture, display units and decorative surfaces where a recessed channel can be cut. In projects that want a 22 mm body together with a wide side frame, it is assessed from its section.

Installation and Model Compatibility

The channel is prepared taking the 22 mm outer body and the installation allowance into account. The profile is aligned and the wide flanges are seated evenly on the surface. The LED strip is chosen according to the inner seat dimension and the power requirement. The cover and the appearance of the light are checked on a short run before the whole line is completed.

Made to order

Bulk Order Request

Product
12×45 Flanged LED Profile Y6372
metre

Include the unit. Write "Standard size" if you need the standard size.

Required fields · Personal data notice (KVKK)

How is it installed?

  1. Measure and cut

    Mark the profile to the length required and cut it straight with a metal-cutting saw.

  2. Fit the LED strip

    Remove the backing tape from the strip and press it along the full length of the channel base to stick it down.

  3. Route the cable out

    Take the power cable out through the end of the profile or through a hole you have drilled.

  4. Fix the profile

    Fix the profile to the mounting surface with clips, screws or adhesive.

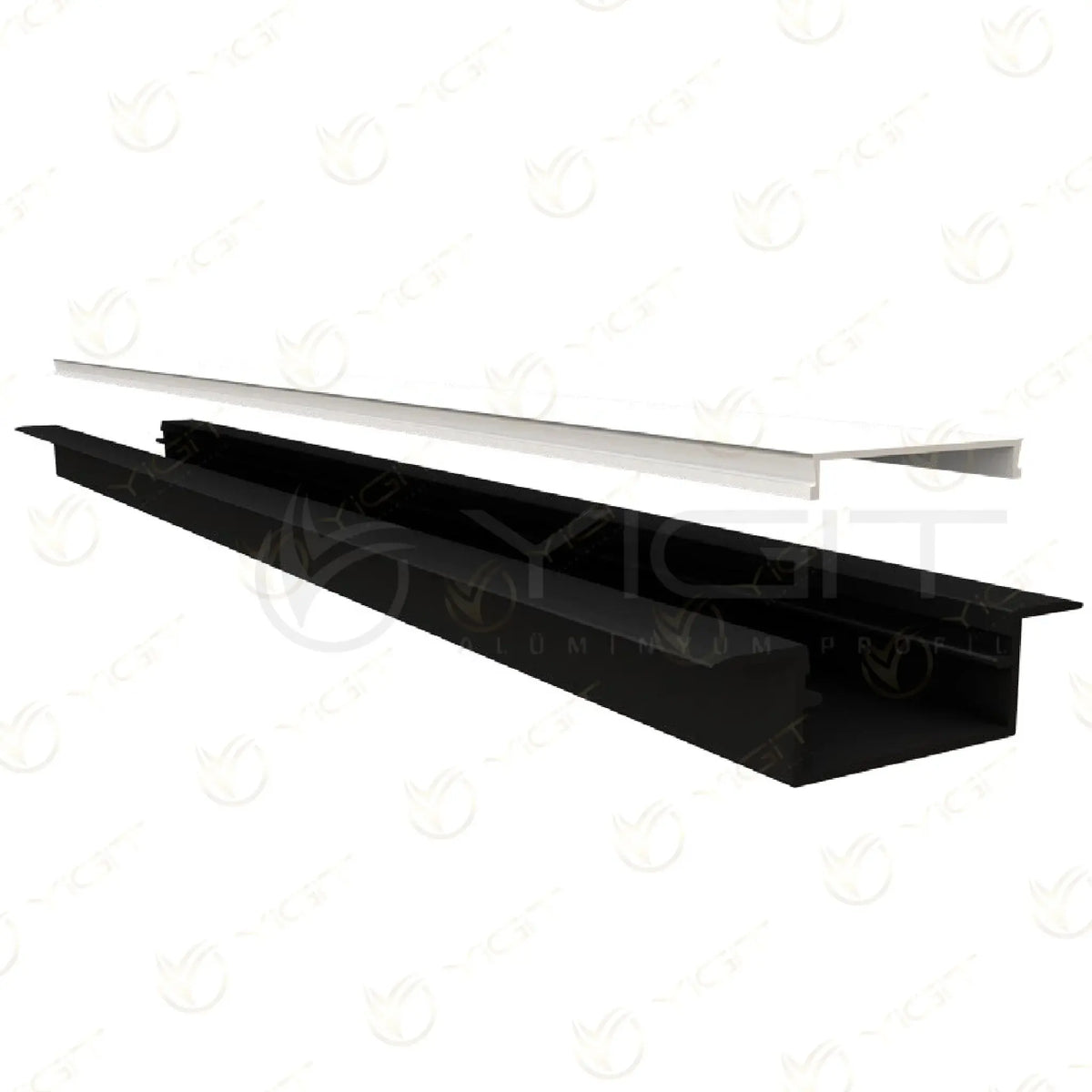

  5. Fit the cover

    Press the cover into the channel until it seats, then fit the end caps.

How is the cover fitted?

  1. Start from one end

    Insert one end of the cover into the channel at the end of the profile.

  2. Press along the full length

    Press the cover with your thumb to seat it in the channel along the profile.

  3. Fit the end caps

    Close both ends of the profile with the end caps.

LED profile or spotlight?

Spot lighting LED profile
Appearance of the light Separate points of light on the ceiling A single, continuous line of light
Light distribution Bright under the spotlight, shadowed in between Even along the profile
Glare The light source is directly visible The cover diffuses the light and hides the source
Mark on the ceiling A separate hole for each spotlight A single thin line

LED strip comparison

More chips per metre, more uniform light.

  • 60-Chip LED Strip

    Distinct points of light

    60-Chip LED Strip

  • 120-Chip LED Strip

    More closely spaced points of light

    120-Chip LED Strip

  • 240-Chip LED Strip

    A more uniform, smooth line of light

    Recommended choice

    240-Chip LED Strip

  • COB LED Strip

    Dot-free, continuous line of light

    Recommended choice

    COB LED Strip

Representative comparison for the same profile and diffuser.

Where is it used?

All applications

Frequently asked questions

Which colour options are available?

Colour and finish options vary by product. For products with more than one option, the selection is made in the purchase area. For products with a single finish, the finish is stated under Product Specifications. For colours outside the standard options, you can submit a custom colour request with a RAL code.

Can I get a price for project and wholesale orders?

Yes. If you send us the project quantity and the application area on our WhatsApp line, we will prepare a quote for you.

Can I see a sample before buying?

Yes. With the sample button on the product page you can add a 10 cm sample of this profile to your cart. The sample appears as a separate line in the cart.
